Parker PD Series Test Port Nipples

    Body Material Prefix:

    Steel (Standard) - no prefix
    B - Brass
    SS - Stainless Steel

    Seal Material Suffix:

    W - Ethylene Propylene
    Y - Fluorocarbon
    Z - Neoprene

    PD Sereis Dust Cap:

    Part #: PD6-285
    To add a dust cap to a part number, add "-6" suffix
    Example: PD343-6

    PD Series Nipple - Male
    Parker PD Series Couplers    		 PD Series Nipple - Male
    Parker PD Series Couplers    		 PD Series Nipple - Male
    Parker PD Series Nipples

    PD Series Test Port Nipples - Female Pipe Thread

    PD Series Coupler - Female



    Body

    Size

    Part

    Number

    Thread

    Size

    Overall

    Length

    Exposed

    Length

    Wrench

    Flats

    Largest

    Diameter

    Weight

    1/8

    PD322

    1/8-27 NPTF

    1.48

    0.78

    0.56

    0.65

    0.06

    1/8

    PD342

    1/4-18 NPTF

    1.63

    0.93

    0.75

    0.87

    0.12

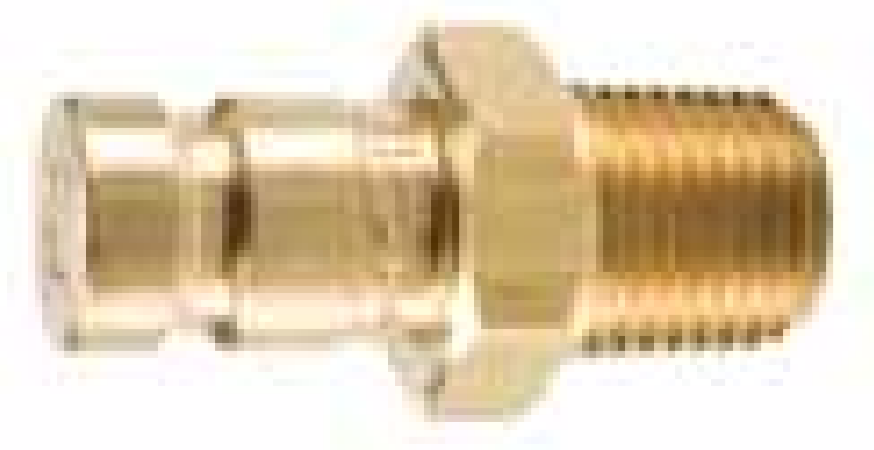

    PD Series Test Port Nipples - Male Pipe Thread

    PD Series Nipple - MalePD Series Nipple - MalePD Series Nipple - Male



    Body
    Size

    Part
    Number

    Thread
    Size

    Overall
    Length

    Exposed
    Length

    Wrench
    Flats

    Largest
    Diameter

    Weight

    1/8

    PD323

    1/8-27 NPTF

    1.55

    0.85

    0.69

    0.79

    0.17

    1/8

    BPD323Y*

    1/8-27 NPTF

    1.44

    0.74

    0.63

    0.72

    0.17

    1/8

    BPD343Y*

    1/4-18 NPTF

    1.48

    0.78

    0.69

    0.79

    0.06

    1/8

    PD343

    1/4-18 NPTF

    1.48

    0.78

    0.69

    0.79

    0.06

    1/8

    SSPD343Y**

    1/4-18 NPTF

    1.48

    0.78

    0.69

    0.79

    0.06

    1/8

    PD363

    3/8-18 NPTF

    1.50

    1.13

    0.81

    0.96

    0.09


    PD Series Test Port Nipples - Male Metric Thread

    PD Series Nipple - Male



    Body
    Size

    Part
    Number

    Thread Size
    Metric

    Overall
    Length

    Exposed
    Length

    Wrench
    Flats

    Largest
    Diameter

    Weight

    1/8

    PD357

    M10 x 1.0

    1.80

    1.10

    0.69

    0.79

    0.17

    1/8

    PD397

    M12 x 1.5

    1.85

    1.05

    0.69

    0.79



    1/8

    PD367C

    		 M14 x 1.5 1.50 0.80 0.75 0.87

    1/8

    PD3107

    M16 x 1.5

    1.54

    0.84

    0.88

    1.01

    0.08

    1/8

    PD3127

    M18 x 1.5

    1.60

    0.90

    0.94

    1.08

    0.09

    1/8

    PD3147

    M20 x 1.5

    1.50

    0.80

    0.75

    0.87

    0.07

    1/8

    BPD3167

    M22 x 1.5

    1.65

    0.95

    1.12

    1.30




    PD Series Test Port Nipples - Male Straight Thread

    PD Series Nipple - Male



    Body
    Size

    Part
    Number

    Thread Size
    ORB

    Overall
    Length

    Exposed
    Length

    Wrench
    Flats

    Largest
    Diameter

    Weight

    1/8

    PD331

    3/8-24 UNF

    1.80

    1.10

    0.69

    0.79

    0.17

    1/8

    PD341

    7/16-20 UNF

    1.60

    0.90

    0.69

    0.79

    0.08

    1/8

    PD351

    1/2-20 UNF

    1.32

    0.62

    0.63

    0.72

    0.05

    1/8

    PD361

    9/16-18 UNF

    1.32

    0.62

    0.69

    0.79

    0.06


    PD Series Test Port Nipples - Bulkhead Triple-Lok

    PD Series Nipple - Male



    Body
    Size

    Part
    Number

    Thread
    Size

    Tube
    Size

    Overall
    Length

    Exposed
    Length

    Wrench
    Flats

    Largest
    Diameter

    Weight

    1/8

    PD345

    7/16-20 UNF

    1/4

    2.92

    2.22

    0.81

    0.94

    0.19

    1/8

    PD355

    1/2-20 UNF

    5/16

    2.92

    2.22

    0.81

    0.94

    0.19

    1/8

    PD365

    9/16-18 UNF

    3/8

    3.00

    2.30

    0.81

    0.94

    0.20


    PD Series Test Port Nipples - Bulkhead Seal-Lok

    PD Series Nipple - Male



    Body
    Size

    Part
    Number

    Thread
    Size

    Tube
    Size

    Overall
    Length

    Exposed
    Length

    Wrench
    Flats

    Largest
    Diameter

    1/8

    PD346

    9/16-18 UNF

    1/4

    2.98

    2.27

    0.81

    0.94

    1/8

    PD366

    11/16-16 UNF

    3/8

    3.08

    2.37

    1.00

    1.16

    1/8

    PD386

    13/16-16 UNF

    1/2

    3.18

    2.47

    1.12

    1.30

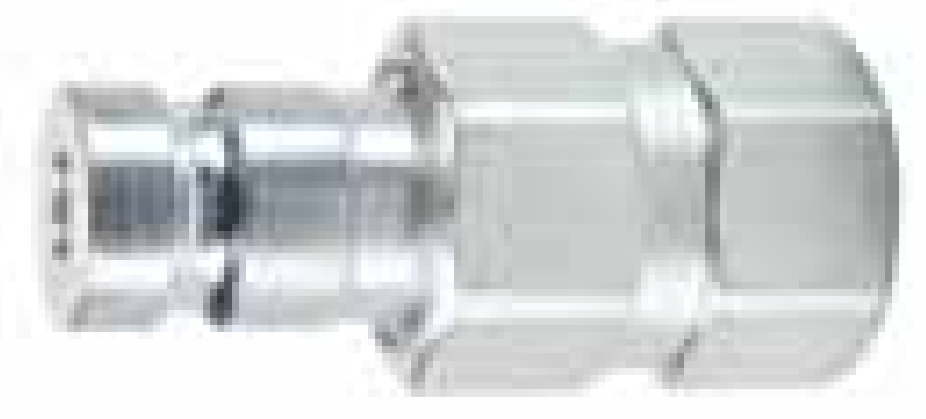

    PD Series Test Port Nipples* - Tube End Triple-Lok

    PD Series Nipple - Male



    Body
    Size

    Part Number
    Steel

    Tube
    Size

    Overall
    Length

    Exposed
    Length

    Weight

    1/8

    PD34BTX

    1/4

    1.64

    0.94

    0.10

    1/8

    PD36BTX

    3/8

    1.66

    0.96

    0.09


    PD Series Nipple - Male



    Body
    Size

    Part Number
    Steel

    Tube
    Size

    Overall
    Length

    Exposed
    Length

    Weight

    1/8

    PD38BTX

    1/2

    1.17

    0.47

    0.12

    1/8

    PD312BTX

    3/4

    1.39

    0.69

    0.27

    * Tube end nipples are designed to meet the performance standards of the tube or hose fitting connection, which may or may not meet SAE J1502 standards.



    PD Series Test Port Nipples* - Tube End Seal-Lok

    PD Series Nipple - Male



    Body
    Size

    Part Number
    Steel

    Tube
    Size

    Overall
    Length

    Exposed
    Length

    Weight

    1/8

    PD34BTL

    1/4

    2.18

    1.48

    0.12

    1/8

    PD36BTL

    3/8

    2.30

    1.60

    0.14


    PD Series Nipple - Male



    Body
    Size

    Part Number
    Steel

    Tube
    Size

    Overall
    Length

    Exposed
    Length

    Weight

    1/8

    PD38BTL

    1/2

    1.57

    0.83

    0.13

    1/8

    PD310BTL

    5/8

    1.16

    0.46

    0.19

    * Tube end nipples are designed to meet the performance standards of the tube or hose fitting connection, which may or may not meet SAE J1502 standards.
