Non-Spill Chemical Transfer QC Thermoplastic Series | Parker PF Coupler Series
 |
COUPLERS |

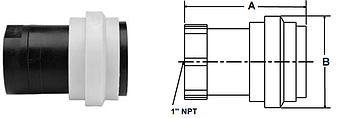

Specifications for Parker PF Series - Non-Spill Chemical Transfer Coupler
|
Body Size (in.) |
Port No. |
Port* Thread |
Dimensions (in.) |
Wrench Flats |
|
|
Overall Length A |
Largest Diameter B |
||||
|
1/2 |
PF-501-8FP |
1/2" NPT |
3.02 |
1.88 |
1.38 |
|
1 |
PF-1001-16FP |
1" NPT |
3.99 |
3.00 |
1.99 |
|
2 |
PF-2001-32FP |
2" NPT |
6.63 |
5.00 |
- |
* Female NPT Threads standard.
|
Body Size |
1/2" |
1" |
2” |
|
Materials: Body |
Polypropylene |
||
|
Springs |
316 Stainless Steel |
||
|
Seals |
Fluorocarbon(1) |
||
|
Rated Pressure (at 68° F) |
100 PSI |
60 PSI |
100 PSI |
|
Rated Flow |
12 GPM 20 GPM |
20 GPM |
50 GPM |
|
Pressure Drop at Rated Flow |
11.3 PSI 3.4 PSI |
3.4 PSI |
4 PSI |
|
Force to Connect |
32 lbs. 41 lbs. |
41 lbs. |
54 lbs. |
|
Force to Disconnect |
12 lbs. 17 lbs. |
17 lbs. |
17 lbs. |
|
Operating Temp. |
+40°F to +140° F |
||
|
Storage Temp. |
-20°F to +140° F |
||
|
Maximum Spillage per Disconnect |
0.14 ml .01 cu. in. |
1ml .06 cu. in. (1cc) |
9 ml .5 cu. in. |
|
Vacuum Rating |
27.4 Hg |
