Parker PF Series-Non Spill Chemical Transfer Nipple

NIPPLES

Sizes 1/2" - 2"

Go to Parker PF Series Coupler
Go to Parker PF Series Dust Caps and Plugs
Select Another Thermoplastic QC

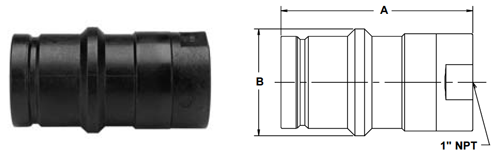

Specifications for Parker PF Series - Non-Spill Chemical Transfer Nipples



Body

Size

(in.)

Part

No.

Port*

Thread

Tank

Mount

Thread

Dimensions (in.)

Wrench

Flats

Overall

Length

A

Largest

Diameter

B

1/2

PF-502-8FP

1/2" NPT

None

2.96

1.33

1.24

1

PF-1002-16FP

1" NPT

None

3.92

2.20

1.87

2

PF-2002-32FP

2” NPT

None

5.71

3.55

-

 * Female NPT Threads standard.



Parker PF Series-Non Spill Chemical Transfer Nipple Tank Mount

NIPPLES TANK MOUNT

Sizes 1/2" - 1"

Go to Parker PF Series Coupler
Go to Parker PF Series Dust Caps and Plugs
Select Another Thermoplastic QC

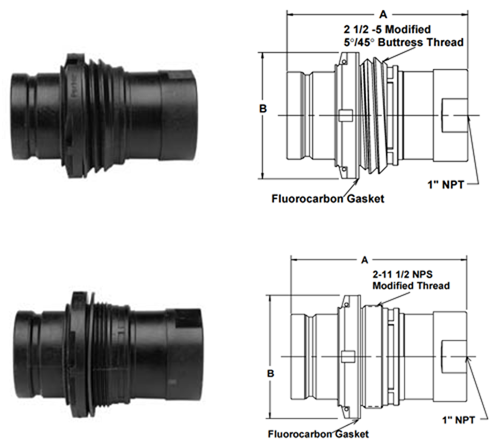

Specifications for Parker PF Series - Non-Spill Chemical Transfer Nipples Tank Mount



Body

Size

(in.)

Part

No.

Port*

Thread

Tank

Mount

Thread

Dimensions (in.)

Wrench

Flats

Overall

Length

A

Largest

Diameter

B

1

PF-1002-32MB

1" NPT

Modified

Buttress

3.92

2.75

1.87

1

PF-1002-32MP

1" NPT

Modified

NPS

3.92

2.75

1.87

 * Female NPT Threads standard.



Body Size

1/2"

1"

2”

Materials:

Body

Polypropylene

Springs

316 Stainless Steel

Seals

Fluorocarbon(1)

Rated Pressure

    (at 68° F)

100 PSI

60 PSI

100 PSI

Rated Flow

12 GPM 20 GPM

20 GPM

50 GPM

Pressure Drop at Rated Flow

11.3 PSI 3.4 PSI

3.4 PSI

4 PSI

Force to Connect

32 lbs. 41 lbs.

41 lbs.

54 lbs.

Force to Disconnect

12 lbs. 17 lbs.

17 lbs.

17 lbs.

Operating Temp.

+40°F to +140° F

Storage Temp.

-20°F to +140° F

Maximum Spillage per Disconnect

0.14 ml

.01 cu. in.

1ml

.06 cu. in. (1cc)

9 ml

.5 cu. in.

Vacuum Rating

27.4 Hg
