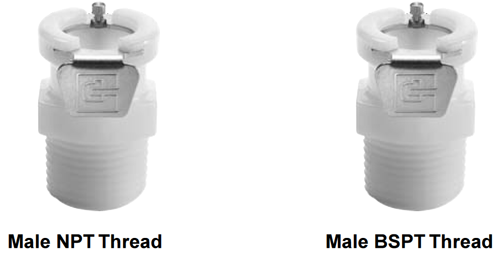

Push-Button Thermoplastic Series | Male Thread | Parker PPM PPL Coupler Series
![]() |
COUPLERS Sizes 1/8" - 1/4" Go to Parker PPM PPL Male Thread Nipples Select Another Thermoplastic QC |
Specifications for Parker PPM PPL Series - Male Thread Coupler
Body Size |
Valved or Non-Valved |
Part Number |
Port End |
L |
W |
H |
|||
1/8 1/8 |
Valved Valved |
PPM-121-2MP PPM-121-4MP |
1/8” NPT 1/4” NPT |
1.00 1.10 |
0.62 0.62 |
0.80 0.80 |
|||
1/8 1/8 |
Non-Valved Non-Valved |
PPM-123-2MP PPM-123-4MP |
1/8” NPT 1/4” NPT |
1.00 1.10 |
0.62 0.62 |
0.80 0.80 |
|||
1/4 1/4 |
Valved Valved |
PPL-251-4MP PPL-251-6MP |
1/4” NPT 3/8” NPT |
1.15 1.15 |
0.75 0.75 |
0.93 0.93 |
|||
1/4 1/4 |
Non-Valved Non-Valved |
PPL-253-4MP PPL-253-6MP |
1/4” NPT 3/8” NPT |
1.15 1.15 |
0.75 0.75 |
0.93 0.93 |
Flow Capacity |
Rated Pressure |
Temperature |
Material: Body |
Material: Latch & Springs |
O-ring |
|
PPM Series |
1/8” |
Vacuum to 120 PSI |
-40° F to +180° F -40° C to +82° C |
Acetal Copolymer |
Stainless Steel |
Nitrile |
PPL Series |
1/4” |
