Push-Button Thermoplastic Series | Male Thread | Parker PPM PPL Nipple Series

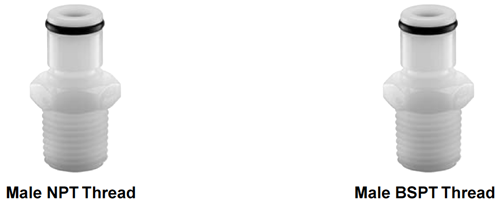

Parker PPM PPL Series NIPPLES

Sizes 1/8" - 1/4"

Go to Parker PPM PPL male Thread Couplers
Select Another Thermoplastic QC



Specifications for Parker PPM PPL Series - Male Thread Nipples



Body

Size

Valved or

Non-Valved

Part Number

Port End

L

W

H

1/8

1/8

Valved

Valved

PPM-122-2MP

PPM-122-4MP

1/8” NPT

1/4” NPT

1.27

1.29

0.50

0.56

0.50

0.56

1/8

1/8

Non-Valved

Non-Valved

PPM-124-2MP

PPM-124-4MP

1/8” NPT

1/4” NPT

1.03

1.13

0.49

0.56

0.49

0.56

1/4

1/4

Valved

Valved

PPL-252-4MP

PPL-252-6MP

1/4” NPT

3/8” NPT

1.50

1.65

0.62

0.75

0.62

0.75

1/4

1/4

Non-Valved

Non-Valved

PPL-254-4MP

PPL-254-6MP

1/4” NPT

3/8” NPT

1.26

1.25

0.62

0.75

0.62

0.75





Flow Capacity

Rated Pressure

Temperature

Material: Body

Material:

Latch & Springs

O-ring

PPM Series

1/8”

Vacuum to 120 PSI

-40° F to +180° F

-40° C to +82° C

Acetal

Copolymer

Stainless Steel

Nitrile

PPL Series

1/4”
