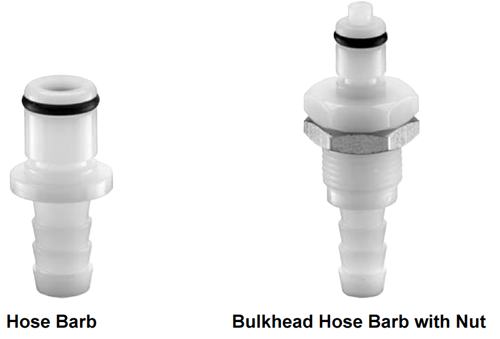

Parker PPM PPL Series NIPPLES

Sizes 1/8" - 1/4"

Go to Parker PPM PPL Hose Barb Couplers
Select Another Thermoplastic QC



Specifications for Parker PPM PPL Series - Hose Barb Nipples



Body

Size

Valved or

Non-Valved

Port End

Part Number

L

W

H

Part Number

L

W

H

1/8

1/8

1/8

1/8

1/8

Valved

Valved

Valved

Valved

Valved

1/8” Hose Barb, In-line

1/8” Hose Barb, 90°

3/16” Hose Barb, In-line

1/4” Hose Barb, In-line

1/4” Hose Barb, 90°

PPM-122-2HB

PPM-122-C2HB

PPM-122-3HB

PPM-122-4HB

PPM-122-C4HB

0.97

1.09

1.12

1.12

1.09

0.55

0.50

0.55

0.55

0.50

0.55

0.95

0.55

0.55

1.10

PPM-122-H2HB


PPM-122-H3HB

PPM-122-H4HB

1.61


1.76

1.76

0.62


0.62

0.62

0.62


0.62

0.62

1/8

1/8

1/8

1/8

1/8

Non-Valved

Non-Valved

Non-Valved

Non-Valved

Non-Valved

1/8” Hose Barb, In-line

1/8” Hose Barb, 90°

3/16” Hose Barb, In-line

1/4” Hose Barb, In-line

1/4” Hose Barb, 90°

PPM-124-2HB

PPM-124-C2HB

PPM-124-3HB

PPM-124-4HB

PPM-124-C4HB

0.97

0.86

1.12

1.12

0.98

0.50

0.50

0.50

0.50

0.50

0.50

1.10

0.50

0.50

1.15

PPM-124-H3HB

1.76

0.62

0.62

1/4

1/4

1/4

1/4

1/4

Valved

Valved

Valved

Valved

Valved

1/4” Hose Barb, In-line

1/4” Hose Barb, 90°

5/16” Hose Barb, In-line

3/8” Hose Barb, In-line

3/8” Hose Barb, 90°

PPL-252-4HB

PPL-252-C4HB

PPL-252-5HB

PPL-252-6HB

PPL-252-C6HB

1.80

1.19

1.85

1.67

1.24

0.70

0.62

0.70

0.70

0.62

0.70

1.23

0.70

0.70

1.23

PPL-252-H4HB



PPL-252-H6HB

1.87



1.84

0.74



0.74

0.74



0.74

1/4

1/4

1/4

1/4

1/4

Non-Valved

Non-Valved

Non-Valved

Non-Valved

Non-Valved

1/4” Hose Barb, In-line

1/4” Hose Barb, 90°

5/16” Hose Barb, In-line

3/8” Hose Barb, In-line

3/8” Hose Barb, 90°

PPL-254-4HB

PPL-254-C4HB

PPL-254-5HB

PPL-254-6HB

PPL-254-C6HB

1.25

1.10

1.28

1.25

1.10

0.62

0.62

0.62

0.62

0.62

0.62

1.27

0.62

0.62

1.23







Flow Capacity

Rated Pressure

Temperature

Material: Body

Material:

Latch & Springs

O-ring

PPM Series

1/8”

Vacuum to 120 PSI

-40° F to +180° F

-40° C to +82° C

Acetal

Copolymer

Stainless Steel

Nitrile

PPL Series

1/4”
