Push-to-Connect Thermoplastic Series | Parker Spectrum Nipple Series

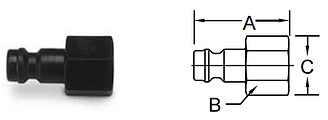

Parker Spectrum Series-Female Pipe Unvalved Nipple UNVALVED NIPPLES

Sizes 1/8" - 3/8"

Go to Parker Spectrum Series Couplers
Select Another Thermoplastic QC



Specifications for Parker Spectrum Series - Female Pipe Unvalved Nipple



Body

Size

(in.)

Acetal

Part No.

PVDF

Part No.

PVDF/PEEK TM

Part No.

Port

NPT

Dimensions (in.)

Overall

Length

A

Wrench

Flats

B

Largest

Diameter

C

1/8

S2-ANS-04-FP

S2-PNS-04-FP

-

1/4-18

1.18

0.67

0.76

3/8

S6-ANS-06-FP

S6-PNS-06-FP

-

3/8-18

1.52

0.83

0.91

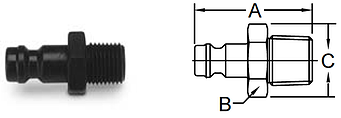

Parker Spectrum Series-Male Pipe Unvalved Nipple UNVALVED NIPPLES

Sizes 1/8" - 3/8"

Go to Parker Spectrum Series Couplers
Select Another Thermoplastic QC



Specifications for Parker Spectrum Series - Male Pipe Unvalved Nipple



Body

Size

(in.)

Acetal

Part No.

PVDF

Part No.

PVDF/PEEK TM

Part No.

Port

NPT

Dimensions (in.)

Overall

Length

A

Wrench

Flats

B

Largest

Diameter

C

1/8

S2-ANS-04-MP

S2-PNS-04-MP

-

1/4-18

1.24

0.67

0.76

3/8

S6-ANS-06-MP

S6-PNS-06-MP

-

3/8-18

1.64

0.83

0.91





Parker Spectrum Series-Hose Barb Unvalved Nipple UNVALVED NIPPLES

Sizes 1/8" - 3/8"

Go to Parker Spectrum Series Couplers
Select Another Thermoplastic QC



Specifications for Parker Spectrum Series - Hose Barb Unvalved Nipple



Body

Size

(in.)

Acetal

Part No.

PVDF

Part No.

PVDF/PEEK TM

Part No.

Hose

I.D.

Dimensions (in.)

Overall

Length

A

Largest

Diameter

B

1/8

S2-ANS-03-HB

S2-PNS-03-HB

-

3/16

(4mm)

1.26

0.34

1/8

S2-ANS-04-HB

S2-PNS-04-HB

-

1/4

(6mm)

1.26

0.34

3/8

S6-ANS-04-HB

S6-PNS-04-HB

-

1/4

(6mm)

1.86

0.71

3/8

S6-ANS-06-HB

S6-PNS-06-HB

-

3/8

(9mm)

1.87

0.71

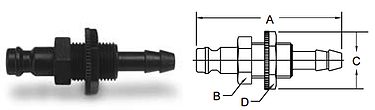

Parker Spectrum Series-Bulkhead Hose Barb Unvalved Nipple UNVALVED NIPPLES

Sizes 1/8"

Go to Parker Spectrum Series Couplers
Select Another Thermoplastic QC



Specifications for Parker Spectrum Series - Bulkhead Hose Barb Unvalved Nipple



Body

Size

(in.)

Acetal

Part No.

PVDF
Part No.

PVDF/PEEK TM

Part No.

Hose

I.D.

Dimensions (in.)

Overall

Length

A

Wrench

Flats

B

Largest

Diameter

C

Bulkhead

Wrench

Flats

D

Bulkhead

Hole

Dia.

1/8

S2-ANS-03-BHB

S2-PNS-03-BHB

-

3/16

(4mm)

1.97

0.55

0.64

0.55

0.44

1/8

S2-ANS-04-BHB

S2-PNS-04-BHB

-

1/4

(6mm)

1.97

0.55

0.77

0.67

0.44

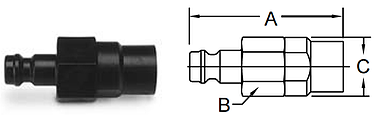

Parker Spectrum Series-Female Pipe Valved Nipple VALVED NIPPLES

Sizes 1/8" - 3/8"

Go to Parker Spectrum Series Couplers
Select Another Thermoplastic QC



Specifications for Parker Spectrum Series - Female Pipe Valved Nipple



Body

Size

(in.)

Acetal

Part No.

PVDF

Part No.

PVDF/PEEK TM

Part No.

Port

NPT

Dimensions (in.)

Overall

Length

A

Wrench

Flats

B

Largest

Diameter

C

1/8

S2-ANV-04-FP

S2-PNV-04-FP

1/4-18

1.80

0.67

0.76

3/8

S6-ANV-04-FP

S6-PNV-04-FP

S6-KNV-04-FP

1/4-18

2.02

0.83

0.91

3/8

S6-ANV-06-FP

S6-PNV-06-FP

S6-KNV-06-FP

3/8-18

2.02

0.83

0.91

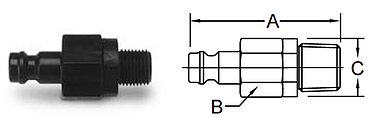

Parker Spectrum Series-Male Pipe Valved Nipple VALVED NIPPLES

Sizes 1/8" - 3/8"

Go to Parker Spectrum Series Couplers
Select Another Thermoplastic QC



Specifications for Parker Spectrum Series - Male Pipe Valved Nipple



Body

Size

(in.)

Acetal

Part No.

PVDF

Part No.

PVDF/PEEK TM

Part No.

Port

NPT

Dimensions (in.)

Overall

Length

A

Wrench

Flats

B

Largest

Diameter

C

1/8

S2-ANV-04-MP

S2-PNV-04-MP

1/4-18

1.80

0.67

0.76

3/8

S6-ANV-04-MP

S6-PNV-04-MP

S6-KNV-04-MP

1/4-18

2.24

0.83

0.91

3/8

S6-ANV-06-MP

S6-PNV-06-MP

S6-KNV-06-MP

3/8-18

2.16

0.83

0.91

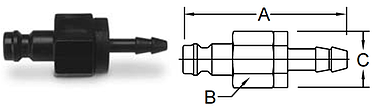

Parker Spectrum Series-Hose Barb Valved Nipple VALVED NIPPLES

Sizes 1/8" - 3/8"

Go to Parker Spectrum Series Couplers
Select Another Thermoplastic QC



Specifications for Parker Spectrum Series - Hose Barb Valved Nipple



Body

Size

(in.)

Acetal

Part No.

PVDF

Part No.

PVDF/PEEK TM

Part No.

Hose

I.D.

Dimensions (in.)

Overall

Length

A

Hex

Size

B

Largest

Diameter

C

1/8

S2-ANV-03-HB

S2-PNV-03-HB

3/16

(4 mm)

1.80

0.67

0.76

1/8

S2-ANV-04-HB

S2-PNV-04-HB

1/4

(6 mm)

1.80

0.67

0.76

3/8

S6-ANV-04-HB

S6-PNV-04-HB

S6-KNV-04-HB

1/4

(6 mm)

2.59

0.82

0.91

3/8

S6-ANV-06-HB

S6-PNV-06-HB

S6-KNV-06-HB

3/8

(9 mm)

2.59

0.82

0.91

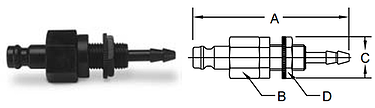

Parker Spectrum Series-Bulkhead Hose Barb Valved Nipple VALVED NIPPLES

Sizes 1/8"

Go to Parker Spectrum Series Couplers
Select Another Thermoplastic QC



Specifications for Parker Spectrum Series - Bulkhead Hose Barb Valved Nipple



Body

Size

(in.)

Acetal

Part No.

PVDF
Part No.

PVDF/PEEK TM

Part No.

Hose

I.D.

Dimensions (in.)

Overall

Length

A

Wrench

Flats

B

Largest

Diameter

C

Bulkhead

Wrench

Flats

D

Bulkhead

Hole

Dia.

1/8

S2-ANV-03-BHB

S2-PNV-03-BHB

-

3/16

(4 mm)

2.35

0.67

0.76

0.55

0.44







Acetal/SS

(black with grey sleeve)

PVDF/SS

(translucent with green sleeve)

PVDF/PEEK TM

(translucent)

Body Size

1/8

3/8

1/8

3/8

3/8

Pressure Range

0-145 psi

(0-10 bar)

0-145 psi

(0-10 bar)

0-115 psi

(0-8 bar)

0-115 psi

(0-8 bar)

15-115 psi

(1-8 bar)

Temperature Range

0° F to 180° F

(-20° C to +80° C)

0° F to 180° F

(-20° C to +80° C)

0° F to 250° F

(-20° C to +120° C)

0° F to 250° F

(-20° C to +120° C)

0° F to 250° F

(-20° C to +120° C)

Rated Flow

1.5 GPM

(5.6 lpm)

4.5 GPM

(17 lpm)

1.5 GPM

(5.6 lpm)

4.5 GPM

(17 lpm)

4.5 GPM

(17 lpm)

Body Material

Acetal

Acetal

PVDF

PVDF

PVDF

Spring Material

316 SS

316 SS

316 SS

316 SS

PEEKTM

Seal Material

Nitrile

Nitrile

Fluorocarbon

Fluorocarbon

Fluorocarbon
