Vibra-Lok Fitting

Parker's Vibra-Lok fittings are designed to provide a positive reliable seal under high-vibration conditions, mechanical shock or tube movement.

The sleeve cushions the tubing, allowing the tubing to flex back and forth in the fitting.

This design compensates for tube misalignment or surface defects.


Vibra-Lok Fittings Features


  • Brass body
  • Sleeves in Buna N and Fluorocarbon
  • Excellent vibration resistance
  • NPTF and SAE J1926 straight threads are standard
  • Working Pressure: Dependent on condition and tube size - refer to pressure chart
  • Temperature Range: -15F to 450F with Fluorocarbon sleeve; -30F to 275F with Buna N sleeve

Use with copper, aluminum, steel (Bundy), stainless steel and glass tubing

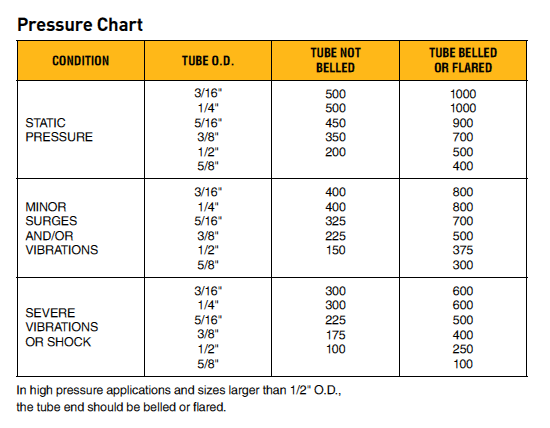

Vibra-Lok Pressure Chart


Available Configurations

Tube to Male NPTF


68VL Male Connector

Male Connector

68VL



169VL Male Elbow

Male Elbow

169VL



682VL Tank Fitting

Tank Fitting

682VL



 171VL Male Run Tee

Male Run Tee

171VL



 172VL Male Branch Tee

Male Branch Tee

172VL

 179VL 45  Male Elbow

45° Male Elbow

179VL


Tube to Female NPTF



66VL Female Connector

Female Connector

66VL





170VL Female Elbow

Female Elbow

170VL



Tube to Tube


 62VL Union

Union

62VL



 164VL Union Tee

Union Tee

164VL



Tube to Straight Thread


 685VLV Male Connector

Male Connector

685VLV



 1695VL Male Elbow

Male Elbow

1695VL



Auxiliary Components



 60VL Sleeve

Sleeve

60VL



 60VLV Fluorocarbon Sleeve

Sleeve - Fluorocarbon

60VLV

 61VL Nut

Nut

61VL

For information on sizes and pricing, please call us at 888.715.4673, email us at hfe@hfeweb.com or fill out a contact form on this page to get answers to your questions.
