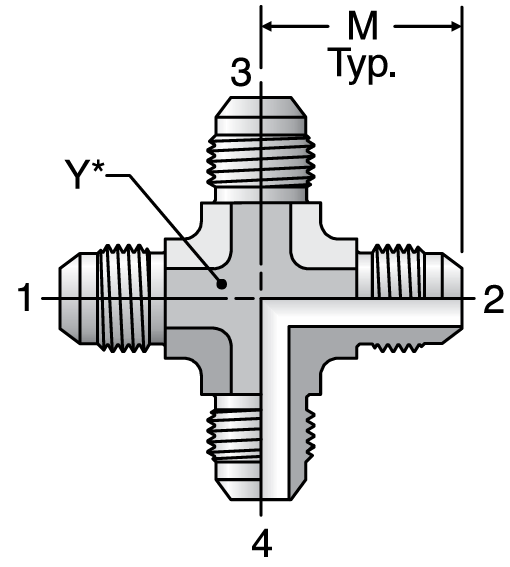

 Parker KTX - JIC Union Cross



JIC Union Cross

Part #: KTX
Manufacturer: Parker
Meets or exceeds: SAE 070501

37° Flare (all four ends)

TUBE

FITTING

PART #

END SIZE

M

(in.)

Y

(in.)

Dynamic
Pressure

(x 1,000 PSI)

1-4

(in.)

-S1

-SS2

-B3

4 KTX

1/4

0.89

7/16

7.5

7.7

3.3

5 KTX

5/16

0.95

9/16

6.0

6.0

3.3

6 KTX

3/8

1.06

9/16

6.0

6.0

3.3

8 KTX

1/2

1.25

3/4

6.0

6.0

3.3

10 KTX

5/8

1.45

7/8

5.0

5.0

3.3

12 KTX

3/4

1.66

1 1/16

5.0

5.0

2.9

16 KTX

1

1.81

1 5/16

4.0

3.5

2.3

1 Steel
2 Stainless Steel
3 Brass
