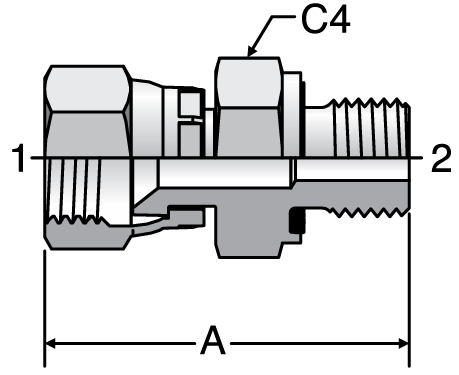

Parker F682EDMX | JIC Straights| Triple-Lok®

TUBE

FITTING

PART #

END SIZE

A

(mm)

C4

(mm)

Dynamic

Pressure

(x 1,000 PSI)

1

2

Male Metric

Parallel Thread

-S¹

-SS²

-B³

(mm)

(in.)

4M10F682EDMX

6

1/4

M10x1

29.7

14

7.2

5.0

3.3

5M12F682EDMX

8

5/16

M12x1.5

36.6

17

6.0

5.0

3.3

6M14F682EDMX

10

3/8

M14x1.5

38.2

19

5.0

5.0

3.3

8M16F682EDMX

12

1/2

M16x1.5

42.3

22

5.0

5.0

3.3

10M22F682EDMX

14, 15, 16

5/8

M22x1.5

48.6

27

5.0

5.0

3.3

12M27F682EDMX

18, 20

3/4

M27x2

51.7

32

5.0

5.0

3.3

16M33F682EDMX

25

1

M33x2

59.0

41

3.6

3.6

2.3
