Parker R87OMX | JIC ISO 6149 Run Tee | Triple-Lok®

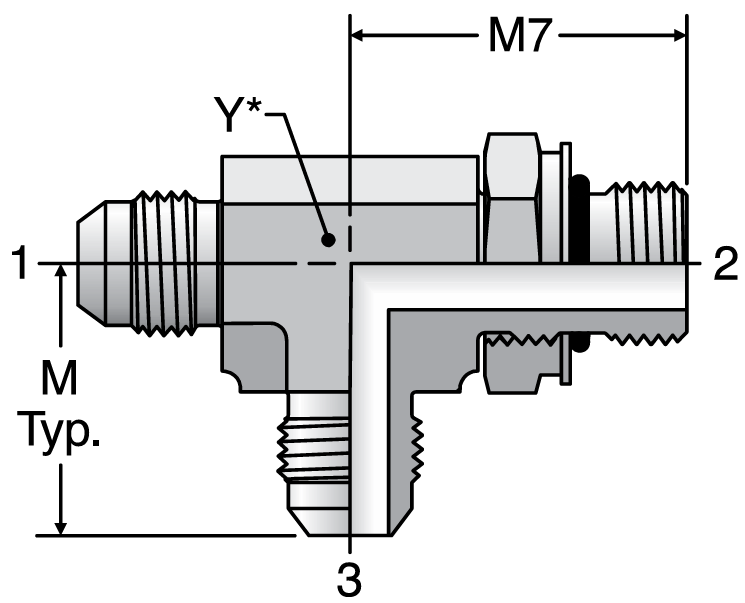

JIC ISO 6149 Run Tee Part #: R87OMX 37° Flare /ISO 6149 /37° Flare |
TUBE FITTING PART # |
END SIZE |
M (mm) |
M7 (mm) |
Y (mm) |
Dynamic Pressure (x 1,000 PSI) |
||||
1 & 3 |
2 |
||||||||
(mm) |
(in.) |
Male Metric Parallel Thread |
|||||||
-S1 |
-SS2 |
-B3 |
|||||||
6M14R87OMX |
10 |
3/8 |
M14 x 1.5 |
26.9 |
33.5 |
14 |
6.0 |
6.0 |
3.3 |
8M16R87OMX |
12 |
1/2 |
M16 x 1.5 |
31.8 |
38.0 |
19 |
5.0 |
5.0 |
3.3 |
10M22R87OMX |
14,15,16 |
5/8 |
M22 x 1.5 |
36.8 |
42.5 |
22 |
5.0 |
5.0 |
3.3 |
12M27R87OMX |
18, 20 |
3/4 |
M27 x 1.5 |
42.2 |
51.0 |
27 |
5.0 |
5.0 |
3.3 |
1 Steel
2 Stainless Steel
3 Brass
