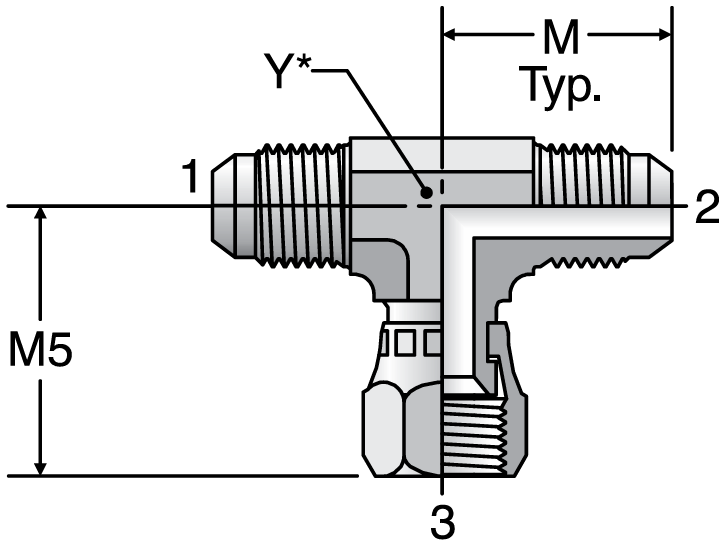

Parker S6X | JIC Swivel Nut Branch Tees | Triple-Lok®

TUBE

FITTING

PART #

END SIZE

M

(in.)

M5

(in.)

Y

(in.)

Dynamic
Pressure

(x 1,000 PSI)

1-3

(in.)

-S¹

-SS²

-B³

4 S6X

1/4

0.89

1.00

7/16

7.5

7.7

3.3

5 S6X

5/16

0.95

1.06

9/16

6.0

6.0

3.3

6 S6X

3/8

1.06

1.25

9/16

6.0

6.0

3.3

8 S6X

1/2

1.25

1.38

3/4

6.0

6.0

3.3

10 S6X

5/8

1.45

1.62

7/8

5.0

5.0

3.3

12 S6X

3/4

1.66

1.75

1 1/16

5.0

5.0

3.3

14 S6X

7/8

1.80

1.78

1 5/16

5.0

5.0

3.3

16 S6X

1

1.81

2.00

1 5/16

4.0

3.0

2.6

20 S6X

1 1/4

2.06

2.31

1 5/8

4.0

3.0

2.6

24 S6X

1 1/2

2.33

2.59

1 7/8

3.0

2.5

2.0
