Parker 0109 | Triple Thread Fittings

 Parker Parker Triple Thread Fittings



Parker Triple Thread Fittings

Part #: 0109
Manufacturer: Parker



NPTF / PTT


TUBE
FITTING
PART #

END SIZE

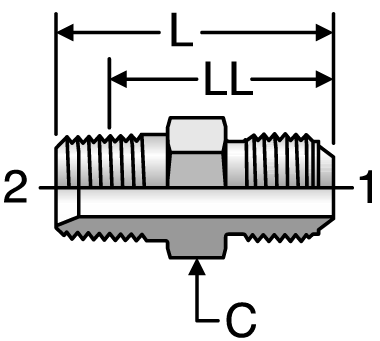

C
HEX
(in.)

L
(in.)

LL
AFTER
ASSY
(in.)

Dynamic
Pressure

(x 1,000 PSI)

1
(in.)

2
NPTF

-S

-SS

-B

0109-12-16

1 (1 5/16-14)

3/4-14

1 3/8

1.84

1.36

3.0

-

-

0109-16-16

1 (1 5/16-14)

1-11 1/2

1 3/8

2.03

1.46

3.0

-

-

0109-20-20

(1 5/8-14)

1 1/4-11 1/2

1 3/4

2.22

1.63

3.0

-

-

0109-24-24

(1 7/8-14)

1 1/2-11 1/2

2

2.50

1.91

3.0

-

-
