Parker P5ONBA | Port Bleed Adapters

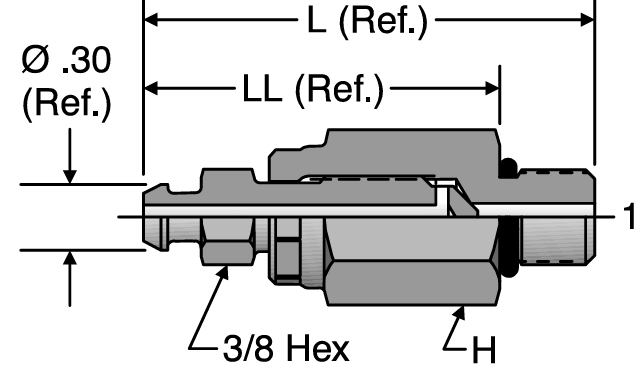

Parker P5ONBA ORFS Bleed Adapters Part #: P5ONBA
Bleed Screw / SAE-ORB |
TUBE FITTING PART # |
END SIZE 1 |
BODY HEX (in.) |
H (in.) |
L REF. (in.) |
LL REF. (in.) |
Pressure (x 1,000 PSI) |
|
Static -S |
Dynamic -S |
||||||
4 P5ONBA |
7/16-20UN/UNF-2A |
11/16 |
11/16 |
2.05 |
1.62 |
10.0 |
6.0 |
