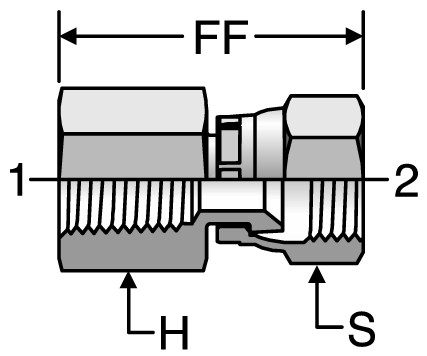

Parker G6X | Parker NPT / SAE Pressure Gauge Adapters (Type F)

TUBE
FITTING
PART #

TYPE

END SIZE

FF
(in.)

H BODY HEX (in.)

S
SWIVEL
NUT
HEX
(in.)

Pressure
(x 1,000 PSI)

1
(in.)

2
NPT

Static

Dynamic

-S

-S

4-4 GLO

A

1/4

1/4-18

1.25

3/4

—

9.5

6.0

6 GLO

A

3/8

1/4-18

1.30

3/4

—

8.0

6.0

8-4 GLO

A

1/2

1/4-18

1.20

7/8

—

9.5

6.0

4-4 G6L

B

1/4

1/4-18

1.48

3/4

11/16

9.5

6.0

6 G6L

B

3/8

1/4-18

1.60

7/8

13/16

8.0

6.0

8-4 G6L

B

1/2

1/4-18

1.75

7/8

15/16

9.5

6.0

 UN/UNF

4 G5LO

C

1/4

7/16-20

1.10

3/4

—

6.0

5.0

6-4 G5LO

C

3/8

7/16-20

1.08

3/4

—

6.0

5.0

8-4 G5LO

C

1/2

7/16-20

0.78

7/8

—

6.0

5.0

4 G65L

D

1/4

7/16-20

1.38

11/16

11/16

6.0

5.0

6-4 G65L

D

3/8

7/16-20

1.51

3/4

13/16

6.0

5.0

8-4 G65L

D

1/2

7/16-20

1.57

7/8

15/16

6.0

5.0

 NPT

2 GTX

E

1/8

1/8-27

1.13

9/16

—

10.0

5.0

3 GTX

E

3/16

1/8-27

1.13

9/16

—

10.0

5.0

4-4 GTX

E

1/4

1/4-18

1.39

3/4

—

10.0

5.0

4 GTX

E

1/4

1/8-27

1.19

9/16

—

10.0

5.0

6-2 GTX

E

3/8

1/8-27

1.13

5/8

—

10.0

5.0

6 GTX

E

3/8

1/4-18

1.41

3/4

—

10.0

5.0

8-4 GTX

E

1/2

1/4-18

1.41

13/16

—

8.0

5.0

4-4 G6X

F

1/4

1/4-18

9/16

3/4

9/16

9.5

6.0

4 G6X

F

1/4

1/8-27

9/16

9/16

9/16

10.0

7.5

6 G6X

F

3/8

1/4-18

11/16

3/4

11/16

6.0

5.0
