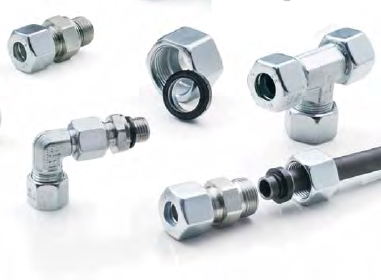

 Parker EO-2 Fittings The EO-2 progressive ring fitting is a Parker flareless  fitting for metric tubing similar to the EO series. The difference between EO fittings and EO-2 fittings is the additional elastomeric seal (on EO fittings), which provides leak-free operation without re-tightening - even under severe conditions.

Another difference is an EO-2 functional nut, which incorporates both the ferule, and the elastomeric seal. The EO-2 functional nut simplifies the EO-2 connection assembly.




Available Configurations | Parker EO-2



 Parker VEE-UNF - EO-2 Adjustable Locknut 45° Elbow



Bite-Type Adjustable Locknut 45° Elbows

Part #: VEE-UNF
Manufacturer: Parker



24° Flareless / SAE-ORB


TUBE
FITTING
PART #

END SIZE

I 2
(mm)

I 3
(mm)

S3
(mm)

Pressure Rating (bar)

1
(mm)

2
UN/UNF-2A

EO

EO-2

CF

71

CF

71

VEE06ZL7/16UNF

6

7/16-20

9

19

14

315

315

315

315

VEE08ZL7/16UNF

8

7/16-20

12

19

14

315

315

315

315

VEE10ZL7/16UNF

10

9/16-18

12

24

19

315

315

315

315

VEE12ZL9/16UNF

12

9/16-18

14

24

19

315

315

315

315

VEE12ZL3/4UNF

12

3/4-16

14

24

19

315

315

315

315

VEE15ZL3/4UNF

15

3/4-16

17

24

22

315

315

315

315

VEE15ZL7/8UNF

15

7/8-14

17

24

22

315

315

315

315

VEE18ZL7/8UNF

18

7/8-14

17

30

27

315

315

315

315

VEE18ZL11/16UN

18

1 1/16-12

17

30

30

315

315

315

315

VEE22ZL11/16UN

22

1 1/16-12

19

33

30

160

160

160

160

VEE28ZL15/16UN

28

1 5/16-12

23

35

36

160

160

160

160

VEE35ZL15/8UN

35

1 5/8-12

27

37

50

160

160

160

160

VEE42ZL17/8UN

42

1 7/8-12

26

37

50

160

160

160

160

VEE06ZS7/16UNF

6

7/16-20

9

18

14

400

400

400

400

VEE08ZS9/16UNF

8

9/16-18

12

21

19

400

400

400

400

VEE10ZS9/16UNF

10

9/16-18

13

21

19

400

400

400

400

VEE12ZS3/4UNF

12

3/4-16

17

22

22

400

400

400

400

VEE16ZS7/8UNF

16

7/8-14

16

29

27

400

400

400

400

VEE20ZS11/16UN

20

1 1/16-12

16

31

30

400

400

400

400

VEE25ZS11/16UN

25

11/16-12

30

33

36

400

400

400

400

VEE30ZS15/8UN

30

1 5/8-12

24

35

50

250

250

250

250

VEE38ZS17/8UN

38

1 7/8-12

21

35

50

250

250

250

250
