Parker RED S-Series | 24° Flareless Tube End Reducers for Metric Tubing | Parker EO-2
The EO-2 progressive ring fitting is a Parker flareless fitting for metric tubing similar to the EO series. The difference between EO fittings and EO-2 fittings is the additional elastomeric seal (on EO fittings), which provides leak-free operation without re-tightening - even under severe conditions. Another difference is an EO-2 functional nut, which incorporates both the ferule, and the elastomeric seal. The EO-2 functional nut simplifies the EO-2 connection assembly. |
Available Configurations | Parker EO-2

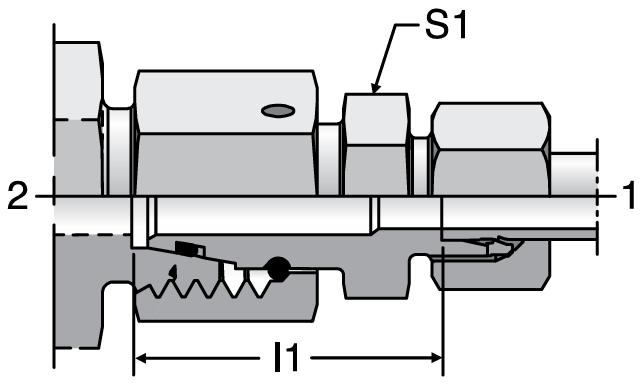

Bite-Type Tube End Reducers Part #: RED S-Series
Flareless Swivel / 24° Flareless |
TUBE |
END SIZE |
I 1 |
S1 |
Pressure Rating (bar) |
||||
1 |
2 |
EO |
EO-2 |
|||||
CF |
71 |
CF |
71 |
|||||
RED08/06ZS |
6 |
M16 x 1.5 |
27.0 |
14 |
800 |
630 |
800 |
630 |
RED10/06ZS |
6 |
M18 x 1.5 |
27.5 |
17 |
800 |
630 |
800 |
630 |
RED10/08ZS |
8 |
|
27.5 |
17 |
800 |
630 |
800 |
630 |
RED12/06ZS |
6 |
M20 x 1.5 |
29.0 |
17 |
630 |
630 |
630 |
630 |
RED12/08ZS |
8 |
|
29.0 |
17 |
630 |
630 |
630 |
630 |
RED12/10ZS |
10 |
|
29.5 |
19 |
630 |
630 |
630 |
630 |
RED14/06ZS |
6 |
M22 x 1.5 |
31.5 |
19 |
630 |
630 |
630 |
630 |
RED14/08ZS |
8 |
|
31.5 |
19 |
630 |
630 |
630 |
630 |
RED14/10ZS |
10 |
|
31.0 |
19 |
630 |
630 |
630 |
630 |
RED14/12ZS |
12 |
|
31.0 |
22 |
630 |
630 |
630 |
630 |
RED16/06ZS |
6 |
M24 x 1.5 |
32.0 |
22 |
630 |
400 |
630 |
400 |
RED16/08ZS |
8 |
|
32.0 |
22 |
630 |
400 |
630 |
400 |
RED16/10ZS |
10 |
|
31.5 |
22 |
630 |
400 |
630 |
400 |
RED16/12ZS |
12 |
|
31.5 |
22 |
630 |
400 |
630 |
400 |
RED16/14ZS |
14 |
|
33.0 |
24 |
630 |
400 |
630 |
400 |
RED20/06ZS |
6 |
M30 x 2 |
36.0 |
27 |
420 |
400 |
420 |
400 |
RED20/08ZS |
8 |
|
36.0 |
27 |
420 |
400 |
420 |
400 |
RED20/10ZS |
10 |
|
35.5 |
27 |
420 |
400 |
420 |
400 |
RED20/12ZS |
12 |
|
35.5 |
27 |
420 |
400 |
420 |
400 |
RED20/14ZS |
14 |
|
37.0 |
27 |
420 |
400 |
420 |
400 |
RED20/16ZS |
16 |
|
36.5 |
27 |
420 |
400 |
420 |
400 |
RED25/06ZS |
6 |
M36 x 2 |
38.5 |
32 |
420 |
400 |
420 |
400 |
RED25/08ZS |
8 |
|
38.5 |
32 |
420 |
400 |
420 |
400 |
RED25/10ZS |
10 |
|
38.0 |
32 |
420 |
400 |
420 |
400 |
RED25/12ZS |
12 |
|
38.0 |
32 |
420 |
400 |
420 |
400 |
RED25/14ZS |
14 |
|
39.5 |
32 |
420 |
400 |
420 |
400 |
RED25/16ZS |
16 |
|
39.0 |
32 |
420 |
400 |
420 |
400 |
RED25/20ZS |
20 |
|
39.0 |
32 |
420 |
400 |
420 |
400 |
RED30/08ZS |
8 |
M42 x 2 |
44.0 |
41 |
420 |
400 |
420 |
400 |
RED30/10ZS |
10 |
|
43.5 |
41 |
420 |
400 |
420 |
400 |
RED30/12ZS |
12 |
|
43.5 |
41 |
420 |
400 |
420 |
400 |
RED30/14ZS |
14 |
|
45.0 |
41 |
420 |
400 |
420 |
400 |
RED30/16ZS |
16 |
|
44.5 |
41 |
420 |
400 |
420 |
400 |
RED30/20ZS |
20 |
|
44.5 |
41 |
420 |
400 |
420 |
400 |
RED30/25ZS |
25 |
|
45.0 |
41 |
420 |
400 |
420 |
400 |
RED38/12ZS |
12 |
M52 x 2 |
47.0 |
50 |
420 |
315 |
420 |
315 |
RED38/16ZS |
16 |
|
48.0 |
50 |
420 |
315 |
420 |
315 |
RED38/20ZS |
20 |
|
48.0 |
50 |
420 |
315 |
420 |
315 |
RED38/25ZS |
25 |
|
48.5 |
50 |
420 |
315 |
420 |
315 |
RED38/30ZS |
30 |
|
49.0 |
50 |
420 |
315 |
420 |
31 |
