Parker TEE-M | 24° Flareless Adjustable Locknut Branch Tees for Metric Tubing | Parker EO-2
 |

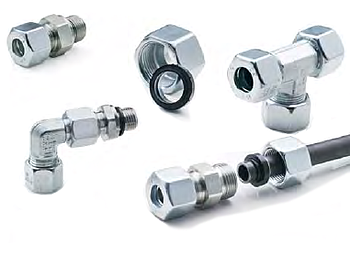

The EO-2 progressive ring fitting is a Parker flareless fitting for metric tubing similar to the EO series. The difference between EO fittings and EO-2 fittings is the additional elastomeric seal (on EO fittings), which provides leak-free operation without re-tightening - even under severe conditions. Another difference is an EO-2 functional nut, which incorporates both the ferule, and the elastomeric seal. The EO-2 functional nut simplifies the EO-2 connection assembly. |
Available Configurations | Parker EO-2
 |
Bite-Type Part #: TEE-M
24° Flareless / Metric ORR |
|
TUBE |
END SIZE |
I 2 |
I 3 |
S3 |
Pressure Rating (bar) |
||||
|
1&2 |
3 |
EO |
EO-2 |
||||||
|
CF |
71 |
CF |
71 |
||||||
|
TEE06ZLM |
6 |
M10x1 |
14 |
20 |
14 |
315 |
315 |
315 |
315 |
|
TEE08ZLM |
8 |
M12x1.5 |
16 |
22 |
14 |
315 |
315 |
315 |
315 |
|
TEE10ZLM |
10 |
M14x1.5 |
17 |
25 |
19 |
315 |
315 |
315 |
315 |
|
TEE12ZLM |
12 |
M16x1.5 |
19 |
26 |
19 |
315 |
315 |
315 |
315 |
|
TEE15ZLM |
15 |
M18x1.5 |
21 |
30 |
22 |
315 |
315 |
315 |
315 |
|
TEE18ZLM |
18 |
M22x1.5 |
24 |
33 |
27 |
250 |
250 |
250 |
250 |
|
TEE22ZLM27X2 |
22 |
M27x2 |
28 |
35 |
30 |
160 |
160 |
160 |
160 |
|
TEE28ZLM |
28 |
M33x2 |
31 |
38 |
36 |
160 |
160 |
160 |
160 |
|
TEE35ZLM |
35 |
M42x2 |
38 |
48 |
50 |
160 |
160 |
160 |
160 |
|
TEE42ZLM |
42 |
M48x2 |
38 |
49 |
50 |
160 |
160 |
160 |
160 |
|
TEE06ZSM |
6 |
M12x1.5 |
15 |
22 |
14 |
315 |
315 |
315 |
315 |
|
TEE08ZSM |
8 |
M14x1.5 |
17 |
26 |
19 |
315 |
315 |
315 |
315 |
|
TEE10ZSM |
10 |
M16x1.5 |
18 |
27 |
19 |
315 |
315 |
315 |
315 |
|
TEE12ZSM |
12 |
M18x1.5 |
22 |
31 |
22 |
315 |
315 |
315 |
315 |
|
TEE16ZSM |
16 |
M22x1.5 |
25 |
35 |
27 |
250 |
250 |
250 |
250 |
|
TEE20ZSM |
20 |
M27x2 |
28 |
39 |
30 |
250 |
250 |
250 |
250 |
|
TEE25ZSM |
25 |
M33x2 |
30 |
44 |
36 |
160 |
160 |
160 |
160 |
|
TEE30ZSM |
30 |
M42x2 |
36 |
51 |
50 |
160 |
160 |
160 |
160 |
|
TEE38ZSM |
38 |
M48x2 |
34 |
54 |
50 |
160 |
160 |
160 |
160 |
