Parker SWVE-M | 24° Flareless Banjo Elbows for Metric Tubing | Parker EO
 |
EO fittings are a great choice for leak free connections under various service conditions ranging from sealing high vacuum and small molecule gases, to high-pressure hydraulic fluids. EO fittings’ compact design makes them ideal for plumbing applications in limited or tight space. EO fittings are suitable for applications in subzero as well as elevated temperatures. The exact service temperature rating is determined by the choice of fitting material, and since EO fittings can be manufactured from a wide range of metals, it's compatibility with various fluids, temperatures, and atmospheric conditions is virtually limitless. |
Parker SWVE-M | 90° Elbows for Metric Bite-Type Fittings | EO
 |

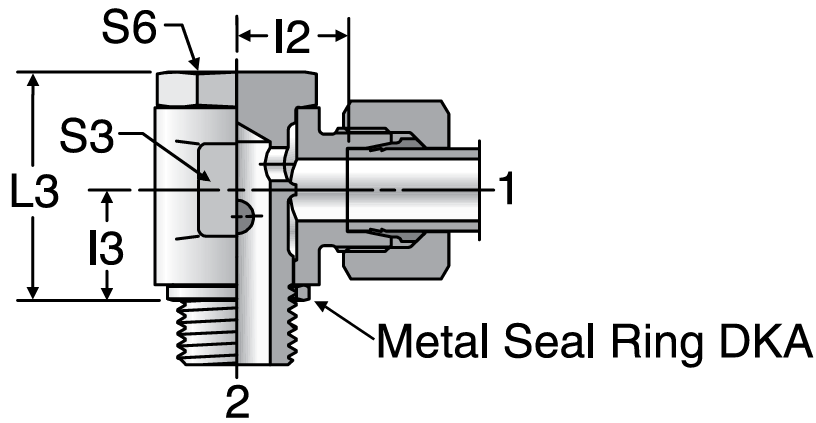

Bite-Type Banjo Elbows Part #: SWVE-M
24° Flareless / Metric Parallel |
|
TUBE |
END 1 |
SIZE |
I 2 |
I 3 |
L3 |
S3 |
S6 |
Pressure Rating |
|
2 |
EO |
|||||||
|
CF |
||||||||
|
SWVE04LLM |
4 |
M8 x 1 |
10.5 |
8.0 |
17.0 |
12 |
12 |
63 |
|
SWVE06LLM |
6 |
M10 x 1 |
10.0 |
10.0 |
21.0 |
14 |
14 |
63 |
|
SWVE08LLM |
8 |
M10 x 1 |
11.0 |
10.0 |
21.0 |
14 |
14 |
63 |
|
SWVE06LM |
6 |
M10 x 1 |
10.5 |
10.0 |
21.5 |
14 |
14 |
160 |
|
SWVE08LM |
8 |
M12 x 1.5 |
12.0 |
12.0 |
25.0 |
17 |
17 |
160 |
|
SWVE10LM |
10 |
M14 x 1.5 |
14.0 |
13.0 |
27.0 |
19 |
19 |
160 |
|
SWVE12LM |
12 |
M16 x 1.5 |
15.5 |
15.0 |
32.0 |
22 |
21 |
100 |
|
SWVE15LM |
15 |
M18 x 1.5 |
17.5 |
18.0 |
37.5 |
24 |
24 |
100 |
|
SWVE18LM |
18 |
M22 x 1.5 |
20.5 |
21.5 |
44.5 |
30 |
27 |
100 |
|
SWVE22LM |
22 |
M26 x 1.5 |
25.5 |
24.0 |
49.0 |
36 |
32 |
100 |
|
SWVE06SM |
6 |
M12 x 1.5 |
14.0 |
12.0 |
25.0 |
17 |
17 |
160 |
|
SWVE08SM |
8 |
M14 x 1.5 |
15.0 |
13.0 |
27.0 |
19 |
19 |
160 |
|
SWVE10SM |
10 |
M16 x 1.5 |
16.0 |
15.0 |
32.0 |
22 |
22 |
100 |
|
SWVE12SM |
12 |
M18 x 1.5 |
17.0 |
18.0 |
37.0 |
24 |
24 |
100 |
|
SWVE14SM |
14 |
M20 x 1.5 |
20.0 |
18.0 |
37.0 |
27 |
27 |
100 |
|
SWVE16SM |
16 |
M22 x 1.5 |
21.5 |
21.5 |
44.5 |
30 |
27 |
100 |
|
SWVE20SM |
20 |
M27 x 2 |
24.5 |
24.0 |
49.0 |
36 |
32 |
100 |
