EO fittings are a great choice for leak free connections under various service conditions ranging from sealing high vacuum and small molecule gases, to high-pressure hydraulic fluids. EO fittings’ compact design makes them ideal for plumbing applications in limited or tight space.

EO fittings are suitable for applications in subzero as well as elevated temperatures. The exact service temperature rating is determined by the choice of fitting material, and since EO fittings can be manufactured from a wide range of metals, it's compatibility with various fluids, temperatures, and atmospheric conditions is virtually limitless.

Parker SWVE-R | 90° Elbows for Metric Bite-Type Fittings | EO

 Parker SWVE-R - EO Banjo Elbows



Bite-Type Banjo Elbows

Part #: SWVE-R
Manufacturer: Parker

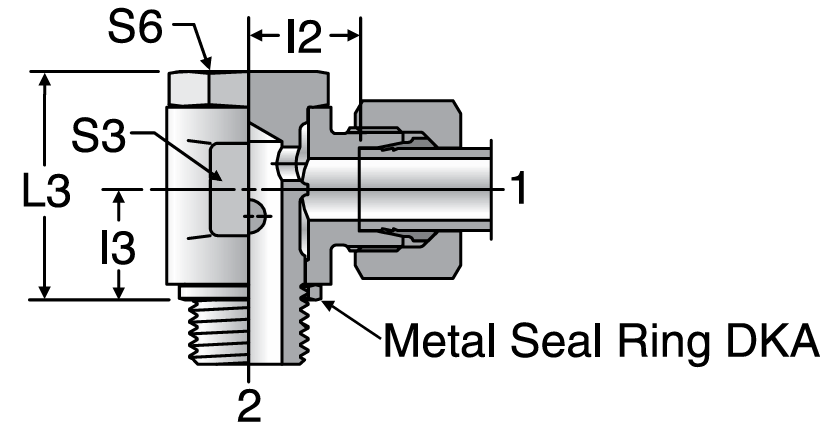

24° Flareless / BSPP


TUBE
FITTING
PART #

END SIZE

I 2
(mm)

I 3
(mm)

L3
(mm)

S3
(mm)

S6
(mm)

Pressure Rating
(bar)

1
(mm)

2
BSPP

EO

CF

SWVE04LLR

4

G 1/8 A

11.5

10.0

21.0

14

14

63

SWVE06LLR

6

G 1/8 A

10.0

10.0

21.5

14

14

63

SWVE08LLR

8

G 1/8 A

11.0

10.0

21.0

14

14

63

SWVE06LR

6

G 1/8 A

10.5

10.0

21.0

14

14

160

SWVE08LR

8

G 1/4 A

13.0

13.0

27.0

19

19

160

SWVE10LR

10

G 1/4 A

14.0

13.0

27.0

19

19

160

SWVE12LR

12

G 3/8 A

15.5

15.0

32.0

22

22

100

SWVE15LR

15

G 1/2 A

19.0

18.0

37.5

27

27

100

SWVE18LR

18

G 1/2 A

20.5

21.5

44.5

30

27

100

SWVE22LR

22

G 3/4 A

25.5

24.0

49.0

36

32

100

SWVE06SR

6

G 1/4 A

15.0

13.0

27.0

19

19

160

SWVE08SR

8

G 1/4 A

15.0

13.0

27.0

19

19

160

SWVE10SR

10

G 3/8 A

16.0

15.0

32.0

22

22

100

SWVE12SR

12

G 3/8 A

17.0

18.0

37.0

24

24

100

SWVE14SR

14

G 1/2 A

20.0

18.0

37.5

27

27

100

SWVE16SR

16

G 1/2 A

21.5

21.5

44.5

30

27

100

SWVE20SR

20

G 3/4 A

24.5

24.0

49.0

36

32

100
