Parker RED L-Series | 24° Flareless Tube End Reducers for Metric Tubing | Parker EO


EO fittings are a great choice for leak free connections under various service conditions ranging from sealing high vacuum and small molecule gases, to high-pressure hydraulic fluids. EO fittings’ compact design makes them ideal for plumbing applications in limited or tight space.

EO fittings are suitable for applications in subzero as well as elevated temperatures. The exact service temperature rating is determined by the choice of fitting material, and since EO fittings can be manufactured from a wide range of metals, it's compatibility with various fluids, temperatures, and atmospheric conditions is virtually limitless.

Parker RED (L-Series) | Straight Swivels for Metric Bite-Type Fittings | EO



 Parker RED L-Series - EO Tube End Reducers



Bite-Type Tube End Reducers

Part #: RED L-Series
Manufacturer: Parker

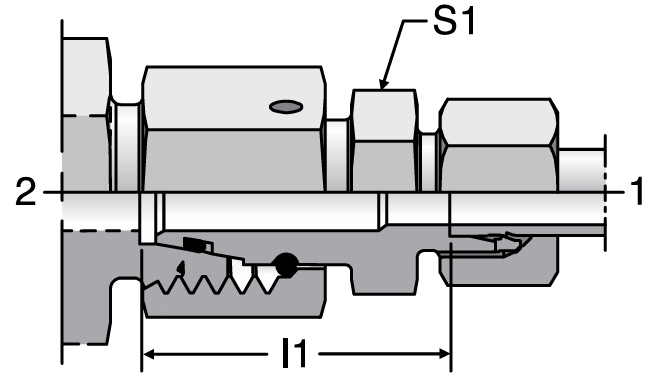

Flareless Swivel / 24° Flareless


TUBE
FITTING
PART #

END SIZE

I 1
(mm)

S1
(mm)

Pressure Rating (bar)

1
(mm)

2
Metric

EO

EO-2

CF

71

CF

71

RED06L/04LL

4

M12 x 1.5

24.5

9

100

100

100

100

RED08/06L

6

M14 x 1.5

23.5

12

500

315

500

315

RED10/06L

6

M16 x 1.5

25

14

500

315

500

315

RED10/08L

8



25

14

500

315

500

315

RED12/06L

6

M18 x 1.5

25

17

400

315

400

315

RED12/08L

8



25

17

400

315

400

315

RED12/10L

10



26

17

400

315

400

315

RED15/06L

6

M22 x 1.5

28.5

19

400

315

400

315

RED15/08L

8



28.5

19

400

315

400

315

RED15/10L

10



29.5

19

400

315

400

315

RED15/12L

12



29.5

19

400

315

400

315

RED18/06L

6

M26 x 1.5

28

24

400

315

400

315

RED18/08L

8



28

24

400

315

400

315

RED18/10L

10



29

24

400

315

400

315

RED18/12L

12



29

24

400

315

400

315

RED18/15L

15



30

24

400

315

400

315

RED22/06L

6

M30 x 2

32

27

250

160

250

160

RED22/08L

8



32

27

250

160

250

160

RED22/10L

10



33

27

250

160

250

160

RED22/12L

12



33

27

250

160

250

160

RED22/15L

15



34

27

250

160

250

160

RED22/18L

18



33.5

27

250

160

250

160

RED28/06L

6

M36 x 2

34

32

250

160

250

160

RED28/08L

8



34

32

250

160

250

160

RED28/10L

10



35

32

250

160

250

160

RED28/12L

12



35

32

250

160

250

160

RED28/15L

15



36

32

250

160

250

160

RED28/18L

18



35.5

32

250

160

250

160

RED28/22L

22



37.5

32

250

160

250

160

RED35/12L

12

M45 x 2

38

41

250

160

250

160

RED35/15L

15



39

41

250

160

250

160

RED35/18L

18



38.5

41

250

160

250

160

RED35/22L

22



40.5

41

250

160

250

160

RED35/28L

28



40.5

41

250

160

250

160

RED42/18L

18

M52 x 2

42

50

250

160

250

160

RED42/22L

22



44

50

250

160

250

160

RED42/28L

28



44

50

250

160

250

160

RED42/35L

35



43

50

250

160

250

160

Orders & Quotes

PLACE ORDER
 FAST QUOTES
 ASK QUESTION

24° Flareless | Parker EO

The EO fittings are the most widely used bite type fittings in the world.

The EO progressive ring fitting is a flareless fitting for metric tubing that consists of a body, a progressive ring (ferrule) and a nut. On assembly, two cutting edges of the progressive ring “bite” into the outer surface of the tube ensuring the necessary holding power and seal for high operating pressures.

parker-eo-fitting

The EO Body. EO fitting bodies are available in over thirty configurations. The shaped products (i.e., elbows, tees, crosses) are hot forged, then machined to the stringent EO fitting specifications. The forging process used by Parker further improves the strength and metallurgical properties of the fitting material.
