Parker KH-R/NPT | 24° FlarelessTwo-Way Ball Valves for Metric Tubing | Parker EO


EO fittings are a great choice for leak free connections under various service conditions ranging from sealing high vacuum and small molecule gases, to high-pressure hydraulic fluids. EO fittings’ compact design makes them ideal for plumbing applications in limited or tight space.

EO fittings are suitable for applications in subzero as well as elevated temperatures. The exact service temperature rating is determined by the choice of fitting material, and since EO fittings can be manufactured from a wide range of metals, it's compatibility with various fluids, temperatures, and atmospheric conditions is virtually limitless.

Parker KH-R/NPT | Ball Valves for Metric Bite-Type Fittings | EO

 Parker KH-R/NPT - EO Two-Way Ball Valves



Bite-Type
Two-Way Ball Valves

Part #: KH-R/NPT
Manufacturer: Parker



Female BSPP/ Female BSPP/ Female NPT/ Female NPT

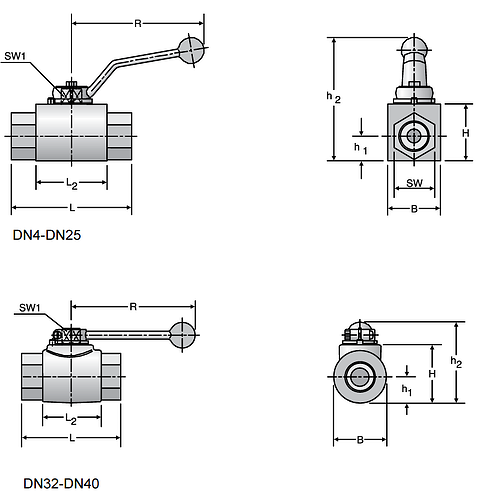

TUBE
FITTING
PART #

END SIZE

DN
SIZE
(mm)

B
(mm)

h1
(mm)

h2
(mm)

H
(mm)

L
(mm)

L2
(mm)

R
(mm)

SW
(mm)

SW1 (mm)

Pressure
Rating (bar)

1 & 2
NPT / BSPP

EO

CF

KH1/8X

G 1/8-28

4

20

10.0

55.0

25.0

69

36

76

19

7

500

KH1/4X

G 1/4-19

6

20

10.0

55.0

25.0

69

36

76

19

7

500

KH3/8X

G 3/8-19

10

30

14.5

68.0

35.0

73

45

100

24

8

500

KH1/2X

G 1/2-14

12

35

17.0

92.0

40.0

82

51

112

30

10

500

KH5/8X

G 5/8-14

16

40

20.0

105.0

45.0

88

50

166

36

11

400

KH3/4X

G 3/4-14

20

45

24.0

113.0

55.0

93

60

187

41

14

400

KH1X

G 1-11

25

55

26.0

118.0

60.0

113

70

187

50

14

400

KH11/4X

G 1 1/4-11

32

73

36.5

180.5

80.0

110

70

320

60

17

315

KH11/2X

G 1 1/2-11

40

85

42.5

190.5

90.0

114

75

320

70

17

315

KH1/871X

G 1/8-28

4

30

13.7

56.5

30.0

69

41

76

22

7

500

KH1/471X

G 1/4-19

6

30

13.7

56.5

30.0

75

41

76

22

7

500

KH3/871X

G 3/8-19

10

40

18.0

84.5

40.0

86

53

130

30

8

500

KH1/271X

G 1/2-14

12

45

21.0

90.0

45.0

92

55

130

32

10

500

KH3/471X

G 3/4-14

20

65

31.0

115.0

65.0

111

65

185

46

14

420

KH171X

G 1-11

25

75

38.0

125.0

75.0

122

71

185

50

14

420

KH11/471X

G 1 1/4-11

32

100

45.0

175.0

93.2

110

86

320

70

19

420

KH11/271X

G 1 1/2-11

40

110

52.2

186.0

104.4

120

92

320

80

19

420

KH1/8NPTX

1/8-27

4

20

10.0

55.0

25.0

69

36

76

19

7

500

KH1/4NPTX

1/4-18

6

20

10.0

55.0

25.0

69

36

76

19

7

500

KH3/8NPTX

3/8-18

10

30

14.5

68.0

35.0

73

45

100

24

8

500

KH1/2NPTX

1/2-14

12

35

17.0

92.0

40.0

82

51

112

30

10

500

KH3/4NPTX

3/4-14

20

45

24.0

113.0

55.0

93

60

187

41

14

400

KH1NPTX

1-11 1/2

25

55

26.0

118.0

60.0

113

70

187

50

14

400

KH11/4NPTX

1 1/4-11 1/2

32

73

36.5

108.5

80.0

110

70

320

60

17

315

KH11/2NPTX

1 1/2-11 1/2

40

85

42.5

190.5

90.0

114

75

320

70

17

315

KH1/8NPT71X

1/8-27

4

30

13.7

56.5

30.0

82

41

76

22

7

500

KH1/4NPT71X

1/4-18

6

30

13.7

56.5

30.0

82

41

76

22

7

500

KH3/8NPT71X

3/8-18

10

40

18.0

84.5

40.0

95

53

130

30

8

500

KH1/2NPT71X

1/2-14

12

45

21.0

90.0

45.0

108

55

130

32

10

500

KH3/4NPT71X

3/4-14

20

65

31.0

115.0

65.0

111

65

185

46

14

420

KH1NPT71X

1-11 1/2

25

75

38.0

125.0

75.0

122

71

185

50

14

420

KH11/4NPT71X

1 1/4-11 1/2

32

100

45.0

175.0

93.2

110

86

320

70

19

420

KH11/2NPT71X

1 1/2-11 1/2

40

110

52.2

186.0

104.4

120

92

320

80

19

420

Note: Omit "CF" in the part number for steel material.
