Parker DG104-M | Ball Bearings for Metric Bite-Type Fittings | EO

 Parker DG104-M - EO Ball Bearing Rotary Elbows



Bite-Type

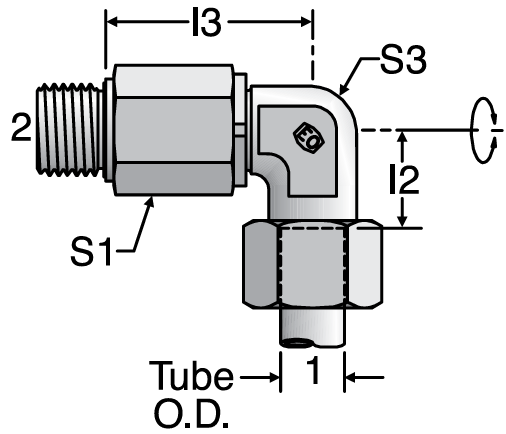

Ball Bearing Rotary Elbows

Part #: DG104-M
Manufacturer: Parker



24° Flareless / Metric Parallel


TUBE

FITTING

PART #

END

SIZE

I 2

(mm)

I 3

(mm)

S1

(mm)

S3

(mm)

Pressure

Rating (bar)

1

(mm)

2

Metric

EO

CF

DG104/06SM

6

M14 x 1.5

16.0

39.5

22

17



DG104/08SM

8

M14 x 1.5

17.0

39.5

22

17

·

DG104/12SM

12

M18 x 1.5

21.5

51.0

30

22

·

DG104/16SM

16

M22 x 1.5

24.5

49.0

30

22

·

DG104/20SM

20

M27 x 2

26.5

67.0

41

36



DG104/25SM

25

M33 x 2

30.0

65.0

41

36

·

DG104/30SM

30

M42 x 2

35.5

82.5

60

50



DG104/38SM

38

M48 x 2

41.0

80.5

60

50
