 Parker WEMLO - ORFS Metric Bulkhead Union Elbow Straight



ORFS Metric Bulkhead Union Elbow Straight

Part #: HLO
Manufacturer: Parker
Meets or exceeds: ISO 8434-3 BHE, SAE 52M0701, WLMLOWLNML- Body with Locknut

ORFS /ORFS


TUBE
FITTING

PART #

END SIZE

d27***

(mm)

E

(mm)

I2

(mm)

I4

(mm)

L16

(mm)

L17

(mm)

S2

(mm)

Dynamic
Pressure
(x 1,000 PSI)

1 & 2

(mm)

(in.)

S1

SS2

4WEMLO

6

1/4

14.3

14

31.5

1.5

22.5

47.0

14

9.2

9.2

6WEMLO

8,10

3/8

17.5

14

34.0

1.5

26.0

52.0

19

9.2

9.2

8WEMLO

12

1/2

20.6

14

36.5

2.5

29.0

55.5

19

9.2

9.2

10WEMLO

14,15,16

5/8

25.4

14

40.5

2.5

34.5

63.0

27

6.0

6.0

12WEMLO

18,20

3/4

30.2

14

41.5

3.0

38.5

67.0

30

6.0

6.0

16WEMLO

22,25

1

36.5

14

42.0

3.0

42.5

71.0

36

6.0

6.0

20WEMLO

28,30,32

1 1/4

42.9

14

42.0

3.0

45.5

75.5

41

5.0

5.0

24WEMLO

35,38

1 1/2

50.8

14

42.0

3.0

49.5

79.5

50

4.0

4.0

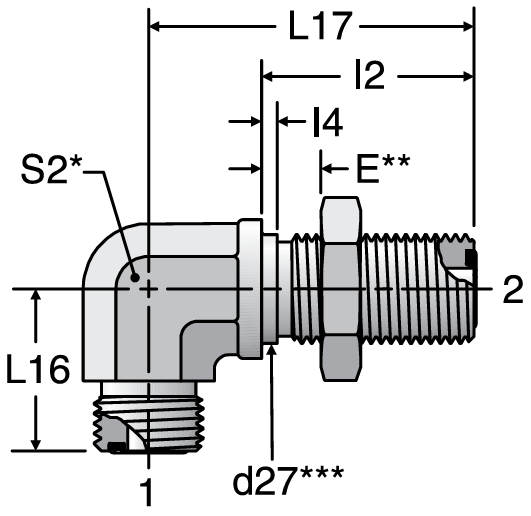

* S2 – Across wrench flats.
** E – Maximum bulkhead thickness.
***d27 - Bulkhead pilot diameter. Recommended clearance is d27 + 0.4 mm.
1 Steel
2 Stainless Steel
