Parker S6LO | O-Ring Face Seal Swivel Nut Branch Tee | Seal-Lok

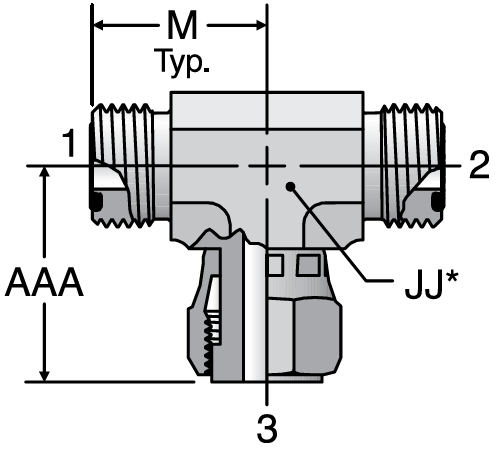

ORFS Swivel Nut Branch Tee Part #: S6LO ORFS /ORFS /ORFS Swivel |
TUBE FITTING PART # |
END SIZE |
AAA (in.) |
JJ (in.) |
M (in.) |
Dynamic (x 1,000 PSI) |
|
1-3 (in.) |
||||||
-S1 |
-SS2 |
|||||
4 S6LO |
1/4 |
1.07 |
9/16 |
0.85 |
9.2 |
9.2 |
6 S6LO |
3/8 |
1.17 |
3/4 |
0.98 |
9.2 |
9.2 |
8 S6LO |
1/2 |
1.50 |
3/4 |
1.10 |
9.2 |
9.2 |
10 S6LO |
5/8 |
1.61 |
1 1/16 |
1.32 |
6.0 |
6.0 |
12 S6LO |
3/4 |
1.83 |
1 3/16 |
1.48 |
6.0 |
6.0 |
16 S6LO |
1 |
2.11 |
1 7/16 |
1.63 |
6.0 |
6.0 |
20 S6LO |
1 1/4 |
2.28 |
1 5/8 |
1.75 |
5.0 |
5.0 |
24 S6LO |
1 1/2 |
2.40 |
1 7/8 |
1.93 |
4.0 |
4.0 |
1 Steel
2 Stainless Steel
