Parker UPTC | O-Ring Face Seal Nut Assembly | Seal-Lok
 |

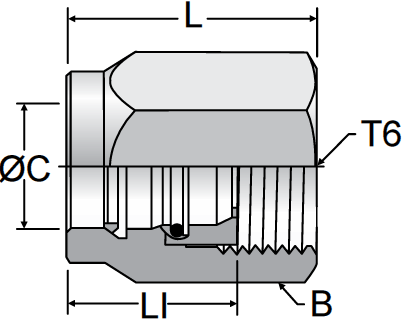

ORFS Nut Assembly Part #: HLO |
|
TUBE FITTING PART # |
END (in.) |
T6 UN/UNF-2B |
B (in.) |
L (in.) |
L1 (in.) |
C |
|
|
Nominal Size |
|||||||
|
(in.) |
(mm) |
||||||
|
4 UPTCL |
1/4 |
9/16-18 |
11/16 |
0.97 |
0.68 |
0.31 |
8 |
|
6 UPTCL |
3/8 |
11/16-16 |
13/16 |
1.06 |
0.74 |
0.47 |
12 |
|
8 UPTCL |
1/2 |
13/16-16 |
15/16 |
1.19 |
0.81 |
0.59 |
15 |
|
10 UPTCL |
5/8 |
1-14 |
1 1/8 |
1.34 |
0.87 |
0.71 |
18 |
|
12 UPTCL |
3/4 |
1 3/16-12 |
1 3/8 |
1.38 |
0.86 |
0.87 |
22 |
|
16 UPTCL |
1 |
1 7/16-12 |
1 5/8 |
1.48 |
0.94 |
0.98 |
25 |
