Parker HP46 | JIS Swivel Union Connectors

 Parker JIS Swivel Union Connectors



JIS Swivel Union Connectors

Part #: HP46
Manufacturer: Parker

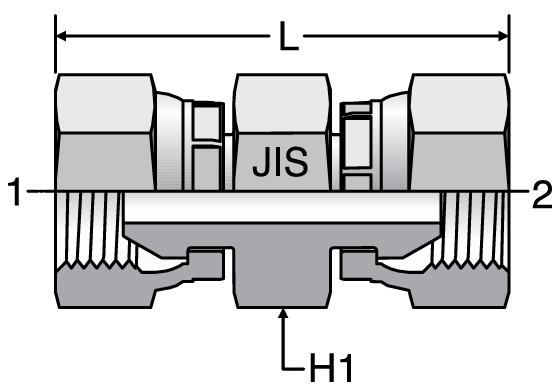

30° Swivel


TUBE

FITTING

PART #

END SIZE

H1

HEX

(in.)

L

(in.)

Dynamic

Pressure

(x 1,000 PSI)

1 & 2

BSPP

S

4HP46

1/4 - 19

0.75

2.12

5.0

6HP46

3/8 - 19

0.88

2.37

5.0

8HP46

1/2 - 14

1.06

2.73

5.0

12HP46

3/4 - 14

1.44

2.96

4.0

16HP46

1-11

1.63

3.24

3.0



Related Resources



Orders & Quotes

PLACE ORDER
 FAST QUOTES
 ASK QUESTION

Parker Fittings and Adapters

Parker Pipe Fittings

JIS fittings are typically used as hose adapters on equipment designed and/or manufactured in Japan and Korea. Parker’s JIS adapters are designed with 30° flare and 60° cone connections and typically incorporate BSP threads.

Parker JIS adapters are designed with BSPP and BSPT port ends and two styles of hose ends: T4 (30° flare, BSPP threads) and P4 (60° cone, BSPP threads). Two additional Parker series of tube fittings, KA (Komatsu flare) and K4 (BS B5200) adapters, are similar to JIS style fittings but KA/K4 FITTINGS ARE NOT INTERCHANGABLE WITH JIS FITTINGS.
