Parker Pipe Fittings | 90° Elbows

This Section contains adapters with thread types including NPT, NPTF, BSPT, BSPP, SAE UN/UNF, and Metric. All the threads in this section are made to industry specifications with conformance shown in table on the right.
Thread Standard

NPT

ANSI B1.20.1, FED-STD-H28/7

NPTF

SAE J476, ANSI B1.20.3, FED-STD-H28/8

BSPT

BS 21, ISO 7/1

BSPP

BS 2779, ISO 228/1

Metric

ISO 261, ANSI B1.13M, FED-STD-H28/21

UN/UNF*

ANSI B1.1, FED-STD-H28/2
*Class 2A or 2B

Parker Pipe Nipples Configurations

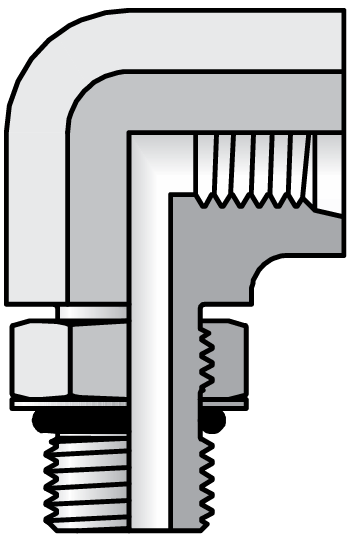

Straight Thread Elbow

Straight Thread Elbows

Part Number:  AOEG5
Manufacturer: Parker
“Female

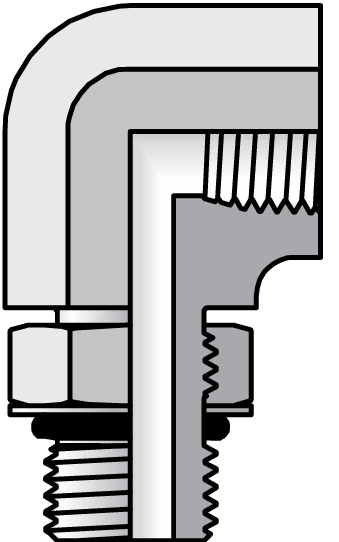

Female Pipe Elbows

Part Number:  AOEG
Manufacturer: Parker
“Extra

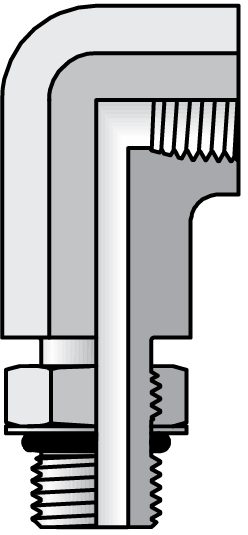

Extra Long Female Pipe Elbows

Part Number:  AOE4G
Manufacturer: Parker
“Male

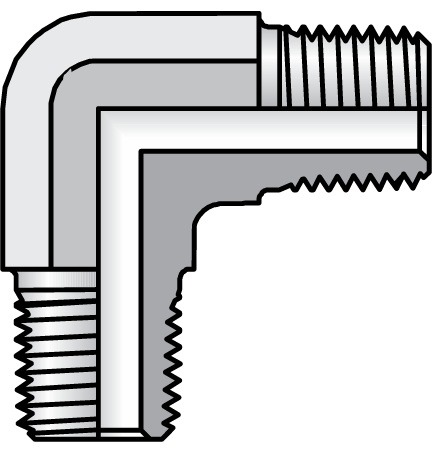

Male Pipe Elbows

Part Number:  CR
Manufacturer: Parker
“Street

Street Elbows

Part Number:  CD
Manufacturer: Parker
“Female

Female Pipe Elbows

Part Number:  DD
Manufacturer: Parker
“ISO

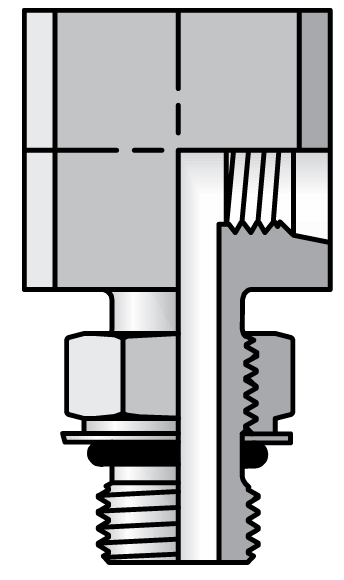

ISO 6149 Female Elbows

Part Number:  A87LPOEG87LPM
Manufacturer: Parker
