Parker F3HG5 | Conversion Adapters
 |
Conversion Adapters Part #: F3HG5
BSPT / SAE-ORB |
|

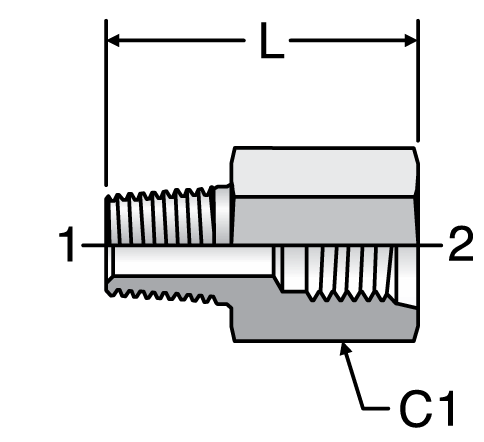

TUBE FITTING PART # |
END SIZE |
C1 HEX (in.) |
L (in.) |
Dynamic (x 1,000 PSI) |
|||
|
1 BSPT |
2 UN/UNF-2B |
||||||
|
-S |
-SS |
-B |
|||||
|
1/8-4F3HG5 |
1/8 - 28 |
7/16 - 20 |
11/16 |
1.09 |
6.0 |
6.0 |
3.3 |
|
1/8-5F3HG5 |
1/8 - 28 |
1/2 - 20 |
3/4 |
1.09 |
6.0 |
6.0 |
3.3 |
|
1/4-6F3HG5 |
1/4 - 19 |
9/16 - 18 |
13/16 |
1.36 |
6.0 |
6.0 |
3.3 |
|
3/8-8F3HG5 |
3/8 - 19 |
3/4 - 16 |
1 |
1.45 |
5.0 |
5.0 |
3.3 |
|
1/2-10F3HG5 |
1/2 - 14 |
7/8 - 14 |
1 1/8 |
1.78 |
4.5 |
4.5 |
2.9 |
|
3/4-12F3HG5 |
3/4 - 14 |
1 1/16 - 12 |
1 3/8 |
1.92 |
4.5 |
4.5 |
2.9 |
|
1-16F3HG5 |
1 - 11 |
1 5/16 - 12 |
1 5/8 |
2.13 |
3.5 |
3.5 |
2.2 |
Related Resources
- How Pipe Connections Seal
- Technical Blog Posts
- Parker Tube Fittings Catalog (Parker Catalog 4300)
- See All Products
Orders & Quotes
 |
 |
 |
Parker Fittings and Port Adapters
Parker pipe fitting shaped products (elbows, tees and crosses) are hot forged and machined. Parker straight pipe fittings are manufactured from cold drawn barstock. Where applicable, the fittings are made in conformance with SAE J514, J530. All Parker steel pipe fittings are zinc plated with silver chromate (zinc chromium 6 free). Stainless steel pipe fittings are passivated.
