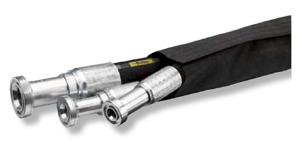

Partek Hose Wrap
The need for a protective hose sleeve is not always considered while designing for a hose’s application. Many hose assembly installations would benefit from a sleeve, but it is not obvious until all the other hoses and components are in place. Parker’s Partek Wrap enables the hose sleeve to be installed after the hose assemblies have been positioned and secured in place. The Partek Hose Wrap can be used as extra abrasion protection or to wrap multiple hoses or cables together. |
Partek Hose Wrap Specifications and Features
Partek Hose Wrap Features
Partek Hose Wrap Features- After-assembly installation
- Light-weight and super flexible
- Easy to close hook and loop fastener
- Simple installation
Partek Hose Wrap Specifications
- Temperature range of -60 F to +200 F
- MSHA Certified for underground mines
- Urethane-coated 1050 Ballistic Nylon
Partek Hose Wrap Sizing Information
| Part Number |
Bundle O.D. |
Circumference | Open Width (+/- 0.375) | Roll Length | Color | ||||||
| inch | inch | inch | feet | Black | |||||||
| PS-BV-100 | 1 | 3.25 | 4.00 | 50 | Black | ||||||
| PS-BV-200 | 2 | 6.00 | 7.75 | 50 | Black | ||||||
| PS-BV-300 | 3 | 9.40 | 10.90 | 50 | Black | ||||||
| PS-BV-400 | 4 | 12.50 | 14.00 | 50 | Black | ||||||
| PS-BV-500 | 5 | 15.75 | 17.25 | 50 | Black | ||||||
| PS-BV-700 | 7 | 22.00 | 23.50 | 50 | Black | ||||||
Available Hose Protection Products
- Partek Defense | Provides protection to personnel and equipment in the event of a hose burst. Valuable in industries such as mining, agriculture, and construction. Contains hose bursts up to 12,000 PSI.
- Partek Wrap | Provides protection against abrasion and allows you to wrap mulitple hoses. Enables hose sleeve to be installed after the hose assemblies have been secured in place.
- Partek Sleeve | Provides protection against abrasion in two ways per the ISO 6945 specification: "AS" is strong enough to withstand greater than 200,000 abrasion cycles and "PS" can withstand greater than 50,000 abrasion cycles.
- PolyGuard | Provides protection against rugged operating conditions and abrasions. Made from black heavy-duty polyethylene shield for resistance against water, gasoline, hydraulic fluid and most solvents.
- ParKoil | Provides protection against hose kink and abrasion for applications that call for a tighter bend radius. Economical alternative with easy installation.
- Spring Guard & Armor Guard | Provides protection against rugged operating conditions by distributing the bend radii to avoid kinking of the hose and abrasions. Constructed of steel and plated to resist rust.
- Polyguard Strain Reliever | Provides protection against kinking of the hose. Made from flexible PVC for easy installation.
- Firesleeve | Provides protection against extreme temperature conditions. Easily slides over hoses and readily expands over fittings.
- Protection Shields | Provides protection against abrasion from metal, concrete and other hoses. Resistant to oil, lubricants, gasoline and most solvents.
IMPORTANT!
Hose and hose fittings series must be correctly matched. Using any fittings other than those specifically designated by the hose manufacturer for use with each specific hose can lead to hose assembly failure. Hose assembly failures have lead to damage, injury and death.
