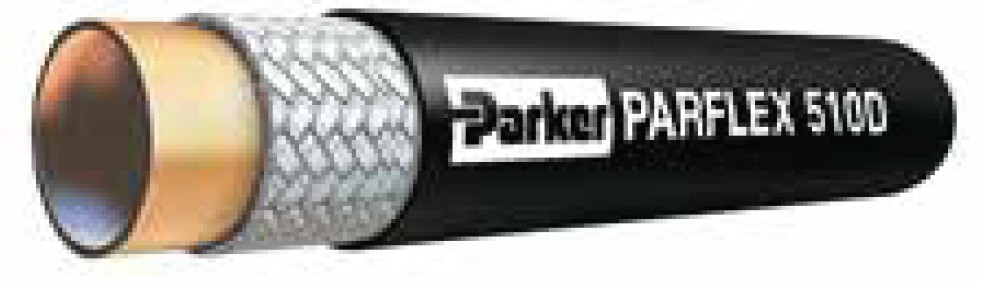

510D Series Parker Hydraulic Hose
 |
Largest Size Selection in a SAE 100R7 hose.
|
Features:
• Matte cover for low coefficient of friction
• Special order colors
• Twin or multi-line available
• Good chemical compatibility
• Approved for use with 51R-Series Field Attachable and Rapid Assembly connections
Compliance:
• Meets/Exceeds SAE J517 100R7
• MSHA compliant cover
• DNV-GL Type Approved
• ISO 3949-R7-1
Construction:
• Tube: Nylon: -3 to -12
Copolyester: -16
• Reinforcement: Fiber
• Cover: Polyurethane
Fittings:
• 56 Series – pg. E-33 51R Series - pg. E-24
• For most Parker products, Crimp Die Selection charts are found online at www.parker.com/crimpsource
• Access instructions are on pg. G-3
Operating Parameters:
• Temperature Range:
-40°F (-40°C) to 212°F (100°C)
- Synthetic, synthetic blend, water, and water/oil emulsion hydraulic fluids limited to 135°F (57°C) {510D-16 only}
• Vacuum Rating: 28 inch Hg
• Change in length at Max. Working Pressure: +/-2%
• Min. Burst Pressure is 4x Max. Working Pressure at 73°F (23°C)
Notes:
• Perforated cover
• For -2 hose needs, please reference HLB02 on pg. A-62
Color:
•Black
|
Part No |
Nominal ID |
Maximum O.D. |
Max Working Pressure |
Min Bend Radius |
Weight |
Permanent Fitting Series |
Field Attachable Fitting Series |
|||||
|
510D |
in |
mm |
in |
mm |
psi |
MPa |
in |
mm |
lb/ft |
kg/m |
|
|
| 510D-3 | 3/16 | 5 | 0.43 | 10.9 | 3250 | 22.4 | 3/4 | 19.0 | 0.05 | 0.07 | 56 | 51R |
| 510D-4 | 1/4 | 6.3 | 0.47 | 11.9 | 3000 | 21.0 | 1-1/2 | 38.0 | 0.06 | 0.09 | 56 | 51R |
| 510D-5 | 5/16 | 8 | 0.57 | 14.5 | 2500 | 17.5 | 1-3/4 | 44.0 | 0.08 | 0.11 | 56 | - |
| 510D-6 | 3/8 | 10 | 0.64 | 16.3 | 2250 | 15.8 | 2 | 51.0 | 0.10 | 0.14 | 56 | 51R |
| 510D-8 | 1/2 | 12.5 | 0.81 | 20.6 | 2250 | 15.8 | 3 | 76.0 | 0.15 | 0.22 | 56 | 51R |
| 510D-10 | 5/8 | 16 | 0.98 | 24.9 | 2750 | 19.2 | 6 | 152.0 | 0.21 | 0.31 | 56 | - |
| 510D-12 | 3/4 | 19 | 1.09 | 27.7 | 1250 | 8.8 | 5 | 127.0 | 0.21 | 0.31 | 56 | - |
| 510D-16 | 1 | 25 | 1.32 | 33.5 | 1000 | 7.0 | 8 | 203.0 | 0.27 | 0.40 | 56 | - |
IMPORTANT!
Hose and hose fittings series must be correctly matched. Using any fittings other than those specifically designated by the hose manufacturer for use with each specific hose can lead to hose assembly failure. Hose assembly failures have lead to damage, injury and death.
WARNING: This product can expose you to chemicals including lead and/or DEHP and/or carbon black, which are known to the State of California to cause cancer or birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
