9M Series | Parker Ultra Flexible Metal Hose

  • Hydroforming process maintains more consistent tube wall thickness and smoother finish than competitive mechanical forming methods
  • High percentage braid coverage means improved life cycle and protection against core tube damage
  • Brightly annealed tube material minimizes risk of Corrosion Crevice Cracking failure and increases chemical resistance
  • Compressed corrugations for increased flexibility
  • Suitable for vacuum applications to 30 in Hg
  • Temperature range for petroleum-based hydraulic fluids of -380º F to +1200º F
 Parker 9M Metal Hose

9M Metal Hydraulic Hose

Application: Protective cover for abrasion & over-bending, chemical transfer, hot oil lines, petrochemical, power generation, pulp & paper, solvent and steam lines
Inner Tube: 300 series stainless steel, Annular profile
Reinforcement: 0, 1 or 2 layers of 300 series SS braided reinforcement
Temperature Range: -380°F to +1200°F (-228°C to +648°C)



9M Metal Hose Sizes and Performance Specifications

ID
(in)
# of
Braids
OD
(in)
Min. Bend
Radius
(in)
Working
Pressure
(PSI)
Burst
Pressure
(PSI)
Weight
Per ft
(lb)
 1/4 0 0.42 3.7  90
0.07
1 0.48  2250 7233 0.14
2 0.53 3375 9100 0.21
 3/8 0 0.65 4.0  70   0.20
1 0.71 1558 6230 0.30
2 0.77 2336  9345
0.40
 1/2 0 0.77 4.4  70   0.22
1 0.83 1186 4743 0.33
2 0.89 1779  7115 0.44
5/8 0 0.96 5.6  57   0.31
1 1.02 1205  4820 0.47
2 1.08 1808  7230 0.63
3/4 0 1.16 6.4  43   0.33
1 1.22 898 3591 0.51
2 1.28 1347 5387
0.69
1 0 1.47 7.1  43   0.45
1 1.53 718 2872 0.69
2 1.63 1077 4308
0.93
1 1/4 0 1.75 7.9  43   0.56
1 1.83 645 2581 0.88
2 1.91 968 3872 1.20
1-1/2   0 2.08  8.7   28   0.82
1 2.16  531 2125 1.20
2 2.24 797
3188
1.58
2 0 2.61  10.3  14   0.95
1 2.69 449 1797 1.47
2 2.77 674 2696 1.99
2-1/2 0 3.40 12.8 14   1.36
1 3.50 417 1669 2.16
2 3.60 626 2504 2.96
3 0 3.88 14.5 14   1.63
1 3.98 346 1384 2.50
2 4.08 519 2076 3.37
4 0 4.96 17.4 14   2.53
1 5.06 299 1194 3.90
2 5.16 448 1791 5.29
5 0 6.00 21.9 14   4.07
1 6.12 275 1099 5.53
2 6.24 412 1649 6.99
6 0 7.01 25.0 11   4.46
1 7.13 210 839 6.34
2 7.25 315 1259 8.22

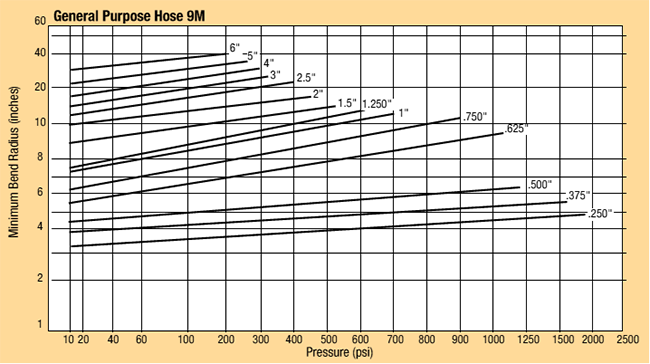

Pressure Rating vs. Minimum Bend Radius of Parker 9M Flexible Metal Hoses

The minimum bend radius of flexible metal hoses increases with pressure. Bend radius is measured from the center line of the hose, and pressure is measured at an ambient temperature of 70°F.

Inside diameter (in inches) of each metal hose is indicated next to the corresponding curve.

Pressure vs Bend Radius Chart - Parker 9M Flexible Metal Hose



9M Metal Hose Assembly Part Number Nomenclature

Part Number 9MCTU01080808C-30 explained

9M 1 TU 01 06 06 06 C - 30

9M = Hose series

  • 9A = General Purpose
  • 9M = Flexible
  • 9H = High Pressure (obsoleted)
  • 9P = High Pressure (higher than 9H)
1 = Core/Braid Combination 1. Core/Braid combinations. Choices described below:
  • 0 - 321 SS Tube, No Braid
  • 1 - 321 SS Tube, 304 SS Single Braid
  • 2 - 321 SS Tube, 304 SS Double Braid
  • 3 - 316 SS Tube, No Braid
  • 4 - 316 SS Tube, 304 SS Single Braid
  • 5 - 316 SS Tube, 304 SS Double Braid
  • 6 - 321 SS Tube, 316 SS Single Braid
  • 7 - 321 SS Tube, 316 SS Double Braid
  • 8 - 316 SS Tube, 316 SS Single Braid
  • 9 - 316 SS Tube, 316 SS Double Braid

TU01 = Fitting Configurations: Universal Tube Stub on one side, male pipe thread with hex on the other side. The available fitting configurations are below - not all configurations are available in all sizes. Contact us prior to ordering.

  • 01 = Male pipe thread with hex (NPTF)
  • 02 = Female pipe thread (NPT)
  • 06 = Female JIC flare swivel (37°)
  • U7 = Female pipe union (NPT)
  • TU = Universal tube stub
  • JC = Female O-ring face seal swivel (ORFS)
  • AL = A-Lok compression®
  • 9K = Raised face weld neck, 150 lb fixed flange
  • 9Y = Raised face weld neck, 300 lb fixed flange
  • 4K = Schedule 40 type A stub, 150 lb lap joint (floating) flange
  • 1Y = Schedule 40 type A stub, 300 lb lap joint (floating) flange
  • 8K = Raised face 150 lb fixed slip-on flange
  • 8Y = Raised Face 300 lb fixed slip-on flange

060606 = ID dash sizes. First end, second end and hose, respectively.

C = Stainless steel material for the hose ends:

  • C = 300 series stainless steel
  • K = 316 stainless steel

30 = Overall length of the assembly (end-to-end) in inches.



How to Order

  • Visit One of Our ParkerStores
  • Click on the quote button below.
 ASK QUESTION!  REQUEST QUOTE





IMPORTANT!
Hose and hose fittings series must be correctly matched. Using any fittings other than those specifically designated by the hose manufacturer for use with each specific hose can lead to hose assembly failure. Hose assembly failures have lead to damage, injury and death.
