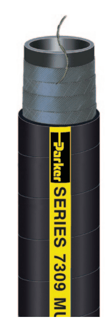

Parker Series 7309 Mud Discharge Hose

Series 7309 is a heavy duty, high pressure discharge hose designed to handle drilling mud, mild chemicals, petroleum waste and water. The hose construction incorporates a heavy wall for durability and a static wire as a path to conduct static electrical charge to ground. The cover is resistant to abrasion, heat, mild chemicals and weathering.

* Series 7309 replaces Parker Series SS160



Parker Series 7309 Hose Features

TUBE Black nitrile
REINFORCEMENT Multiple textile plies with static wire
COVER

Black chloroprene; wrapped finish

TEMPERATURE RANGE -20°F to 180°F (-28°C to 82°C)
DESIGN FACTOR 4:1
INDUSTRY STANDARDS ARPM Class A
APPLICATIONS Drilling mud, mild chemicals, oil, water, general industrial, oil field
VACUUM Not recommended
COMPARE TO Contitech Elaflex HDLT-C
PACKAGING Coils

Parker Series 7309 Hose Specifications

Part Number

ID (in) Reinf Plies OD (in) Max Rec WP (psi)
7309-2000 2 4 2.764 300
7309-3000 3 4 3.835 300
7309-4000 4 4 4.898 300
7309-5000 5 4 5.937 300
7309-6000 6 6 7.087 300
7309-8000 8 6 9.250 300
