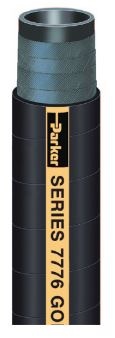

Parker Gold Label 7776 Hose

Parker Series 7776® is a low temperature, high pressure hose for top deck reel and platform type aircraft fueling equipment. The proprietary rubber compounds enable this hose to stay flexible in extreme low temperatures, and the hose construction and materials provide a path to conduct a static electrical discharge to ground. The premium nitrile tube minimizes permeation and will not contaminate product going through the hose, and the nitrile cover is resistant to abrasion, oil and weathering. The hose is also suitable for defueling service at low pressures.

*Series 7776 replaces Parker Series SS244 hose



Parker GOLD LABEL 7776® Series Hose Features

TUBE Black nitrile
REINFORCEMENT Multiple textile plies
COVER

Static conductive black nitrile; wrapped finish

TEMPERATURE RANGE -40°F to 180°F (-40°C to 82°C)
DESIGN FACTOR 4:1
INDUSTRY STANDARDS API 1529:2005, Type E, Grade 2; NFPA 407:2007;BS EN1361:2004
APPLICATIONS Aircraft fueling with avgas and jet fuel in cold temperature environments
VACUUM To 8" Hg<
PACKAGING Coils

Parker GOLD LABEL 7776® Series Hose Specifications

Part #

ID (in) Reinf Plies OD (in) Max Rec WP (psi)
7776-0750 3/4 2 1.378 300
7776-1000 1 2 1.638 300
7776-1250 1-1/4 4 1.190 300
7776-1500 1-1/2 4 2.190 300
7776-2000 2 4 2.740 300
7776-2500 2-1/2 4 3.260 300
7776-3000 3 4 3.760 300
7776-4000 4 4 5.000 300





How to Order

  • Visit One of Our ParkerStores
  • Click on the quote button below.
 ASK QUESTION!  REQUEST QUOTE





IMPORTANT!
Hose and hose fittings series must be correctly matched. Using any fittings other than those specifically designated by the hose manufacturer for use with each specific hose can lead to hose assembly failure. Hose assembly failures have lead to damage, injury and death.
