Half the minimum bend radius of conventional
smoothbore products
Kink and vacuum resistant
Easily cleaned
PPIH full line of optional reinforcement types
Cooler outside temperatures reduce operator burns
Reduces environment temperatures in confined areas
Available with white Silicone jacket

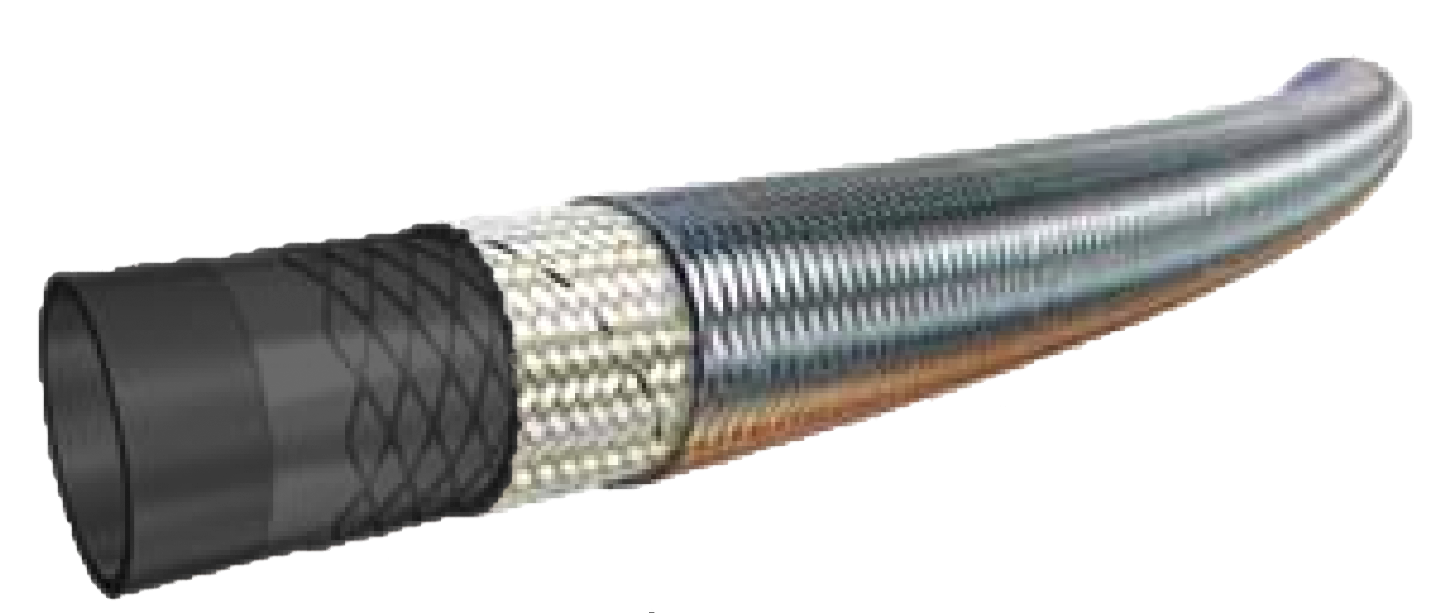

SBFB Series PAGE-flex™ SBF Hose

Specifications: Meets or Exceeds FDA 21 CFR 177.1550, 177.2600, European Pharmacopoeia 3.1.9, ISO 10993 Sections 5, 6, 10, 11, USP Class VI Certified
Application: Food & beverage, pharmaceutical, fluid handling, chemical transfer, cosmetics, paint
Inner Tube: Black Static-dissipative PFA tube
Reinforcement: Bonded wire braid - silicone - textile braided composite with 316 Stainless Steel braid
Temperature Range: -65°F to +325°F (-54°C to +163°C)
Vacuum Rating: 28 inch Hg
Crimp Fittings: PAGE Series
Field Attachable Fittings: Do not use

Sizes and specifications

Part Number	Nominal I.D.		Nominal O.D.		Maximum Working Pressure 73^˚F/ 23^˚C		Minimum Bend Radius		Vac. Rating Hg./73^˚F	Weight
Conductive	inch	mm	inch	mm	psi	bar	inch	mm	inch	lbs./ft.	kg./mtr.
06-SBFB	3/8	10	0.63	16	300	21	2	51	28	0.16	0.24
08-SBFB	1/2	13	0.76	19	300	21	2-1/2	64	28	0.23	0.34
12-SBFB	3/4	19	1.04	26	250	17	3	76	28	0.37	0.55
16-SBFB	1	25	1.29	33	250	17	4	102	28	0.54	.80
24-SBFB	1-1/2	38	1.85	47	200	14	7	178	28	0.83	1.23

IMPORTANT!
Hose and hose fittings series must be correctly matched. Using any fittings other than those specifically designated by the hose manufacturer for use with each specific hose can lead to hose assembly failure. Hose assembly failures have lead to damage, injury, and death.
