Parker SCR | Diesel Exhaust Fluid Hose | Tier IV & EPA '10 Compliant

 Parker SCR Hose for Diesel Exhaust Fluid Conveyance Parker Parflex electrically heated SCR hose assemblies are designed for heating and conveying DEF (Diesel Exhaust Fluid) throughout the SCR system on commercial vehicles. Parker Parflex SCR hoses can handle both on-road and off-road applications and help you stay Tier IV and EPA '10 compliant.

Parflex SCR hoses encapsulate the heating elements with an extruded sheath for added protection and long-lasting, uniform heating. The over-mold on the fittings provide impact and water resistance, making the hoses suitable for multiple environments. Each configuration utilizes materials specifically formulated for its application. All Parflex SCR hose assemblies have multiple options, allowing for customization.

Combine Parker SCR hoses with other Parker Parflex fluid connector/conveyance products (pilot lines, grease lines, hydraulic hoses, fittings, and other products) and enjoy the best-in-class durability and performance.

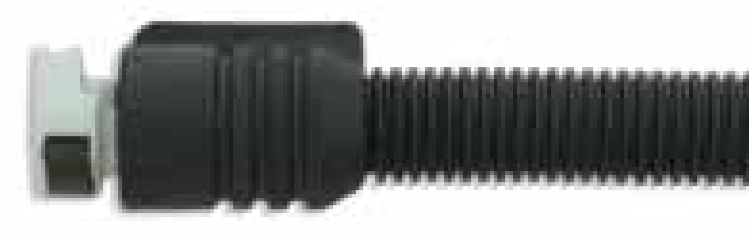

Parker SCR Hose | Suction/Throttle Line Design | SO/S1

 Parker SCR Hose

Parker SCRSO / SCRSO1 Hose | Suction/Throttle Line

Specifications:  ISO 14001 / TS16949
Application:  Diesel Exhaust Fluid Conveyance
Core Tube:  Polyamide
Reinforcement:  Fabric braid
Cover:  Extruded thermoplastic jacket
Temperature Range:  -40°F to +158°F (-40°C to +70°C)
     Spikes up to 221°F (105°C)
Available Length:  0.5 m, 1.0 m, 1.5 m, 2.0 m
     Tolerances: +/- 10 mm for lengths of 0.5 m and 1.5 m
                     +/- 25 mm for lengths of 1.5 m and 2.0 m

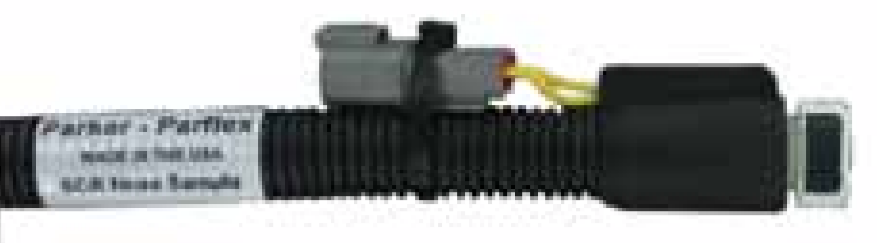

Parker SCRP1 Hose | Pressure Line

 Parker SCR Hose

Parker SCRP1 Hose | Pressure Line Design

Specifications:  ISO 14001 / TS16949
Application:  Diesel Exhaust Fluid Conveyance
Core Tube:  Specialty high-temp polyamide
Reinforcement:  Fabric braid
Cover:  Extruded high-temp thermoplastic jacket with
     heat/abrasion sleeve
Temperature Range:  -40°F to +158°F (-40°C to +70°C)
     Spikes up to 221°F (105°C)
Stainless Steel heating wire
Available Length:  1.0 m, 2.0 m, or 3.0 m
     Tolerances: +/- 10 mm for lengths of 1.0 m and 1.5 m
                     +/- 25 mm for lengths of 2.0 m and 3.0 m

Orders & Quotes

PLACE ORDER
 FAST QUOTES
 ASK QUESTION
 Get Free Brochure

SCR Hose Options

SCR family of hoses come with the following choices:

  • Fittings - 5/16" or 3/8"
  • Power - 12V, 24V, or no power
  • 18 Power connector options (7 are standard)
  • Non-standard lengths and options are available - call for quote
