    Vapor Recovery Hose - Series 1000



    Parker Vapor Recovery Hose Sizes & Specifications

    • Inner Wire: Galvanized steel (G)
    • Inner Liner: Polypropylene fabric
    • Hose Wall: Multiple layers of fabric/film/tubes
    • Cover: Yellow PVC-covered polyester
    • Outer Wire: Galvanized steel (G)
    • Temp Range: -40°F to +212°F (-40°C to +100°C)
    • Brand Method: White text on black stripe
    • Brand Example: PARKER SERIES 1000 VAPOR RECOVERY HOSE 100 PSI MAX WP MADE IN USA
    • Design Factor: 4:1
    • Industry Standards: USCG 33CFR 154.810
    • Applications: Petroleum and petrochemical vapor recovery in bottom loading, ship-to-shore and tank truck transfer NOTE: Not for dry material service.
    • Vacuum: Full
    • Compare to: Apollo 110P, Dantec Danoil VR; Peraflex GGP-VRH; Tift 944 Chemflex VRH; Uni-Chem Uni-VR; Wilcox 1321
    • Standard Wire: G (Galvanized) inner and outer

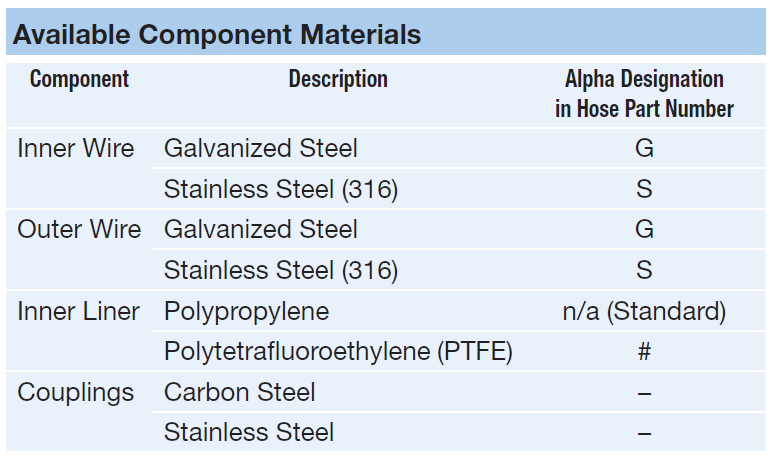

    • Available Wire Options: See table below
    • Alternate P/N Example: 1000GS-4000 (Galvanized inner, Stainless outer)
    • Coupling Rec: Permanently attached one-piece male pipe or flanged ends; cam and groove.
    • Assemblies: Per customer requirement; hydrostatically tested to 150% of the rated working pressure.

    Part Number

    ID
    (in)

    ID
    (mm)

    Approx Wt
    (lbs/ft)

    Min Bend Rad
    (in)

    Max Rec WP
    (psi)

    Max Lg
    (ft)

    1000GG-4000

    4

    101.6

    3.0

    11.0

    100

    70

    1000GG-6000

    6

    152.4

    4.0

    16.0

    100

    65

    1000GG-8000

    8

    203.2

    8.0

    22.0

    100

    65

    1000GG-10000

    10

    254.0

    18.0

    35.0

    100

    50

     vapor recovery hose available component materials


    WARNINGS!
    „It is the responsibility of the user to determine if the hose is suitable for the application. Elevated temperatures can change the chemical resistance ratings. Many chemicals will become more aggressive as temperatures increase, reducing the ability of hose materials to withstand them. Refer to the Composite Hose table in the Chemical Guide section to determine compatibility with specific chemicals. If no data exists, users are required to perform compatibility testing at the desired temperature.
    „
