    Petroleum Transfer Hose - Series 2100



    Parker Petroleum Transfer Hose Sizes & Specifications

    • Inner Wire: Galvanized steel (G)
    • Inner Liner: Polypropylene fabric
    • Hose Wall: Multiple layers of fabric/film/tubes
    • Cover: Blue PVC-covered polyester
    • Outer Wire: Galvanized steel (G)
    • Temp Range: -40°F to +212°F (-40°C to +100°C)
    • Brand Method: Black text on gold stripe
    • Brand Example: PARKER SERIES 2100 PETROLEUM TRANSFER HOSE XXX PSI MAX WP MADE IN USA
    • Design Factor: 4:1
    • Industry Standards: American Bureau of Shipping (ABS) Certificate of Design Assessment 2009 Steel Vessels Rules
    • Applications: Marine, plant processing, rail car, ship-to-shore, tank truck. NOTE: Not for dry material service.
    • Vacuum: Full
    • Compare to: Apollo 100P; Dantec Danoil 7 GG; Peraflex GGP Hydrocarbon; Tift 901 Fuelmaster; Uni-Chem Uni-Oil GG; Wilcox 1091/1151 GG
    • Standard Wire: G (Galvanized) inner and outer

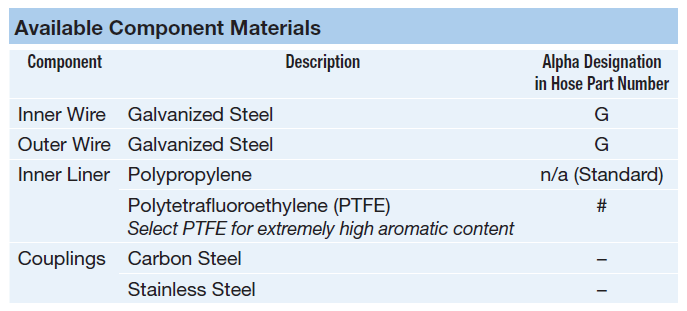

    • Available Wire Options: See table below
    • Coupling Rec: Permanently attached one-piece male pipe or flanged ends; cam and groove.
    • Assemblies: Per customer requirement; hydrostatically tested to 150% of the rated working pressure.

    Part Number

    ID
    (in)

    ID
    (mm)

    Approx Wt
    (lbs/ft)

    Min Bend Rad
    (in)

    Max Rec WP
    (psi)

    Max Lg
    (ft)

    2100GG-1000

    1

    25.4

    0.8

    5.0

    250

    75

    2100GG-1500

    1-1/2

    38.1

    1.0

    6.0

    250

    75

    2100GG-2000

    2

    50.8

    1.2

    6.5

    250

    75

    2100GG-2500

    2-1/2

    63.5

    1.6

    8.0

    250

    75

    2100GG-3000

    3

    76.2

    2.0

    9.5

    250

    70

    2100GG-4000

    4

    101.6

    4.4

    16.0

    250

    70

    2100GG-6000

    6

    152.4

    7.0

    20.0

    250

    65

    2100GG-8000

    8

    203.2

    10.0

    29.0

    250

    65

    2100GG-10000

    10

    254.0

    23.0

    40.0

    150

    50

     petroleum transfer hose 2100 series


    WARNINGS!
    „It is the responsibility of the user to determine if the hose is suitable for the application. Elevated temperatures can change the chemical resistance ratings. Many chemicals will become more aggressive as temperatures increase, reducing the ability of hose materials to withstand them. Refer to the Safety and Technical section for safety, handling and use information. Refer to the Composite Hose table in the Chemical Guide section to determine compatibility with specific chemicals. If no data exists, users are required to perform compatibility testing at the desired temperature.
    „
