Chemical Transfer Hose | Parker 3100 Series

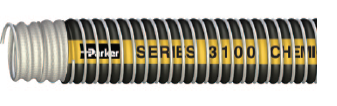

    Chemical Transfer Hose - Series 3100


    Parker Chemical Transfer Hose Sizes & Specifications

    • Inner Wire: Polypropylene-coated steel (P)
    • Inner Liner: Polypropylene fabric
    • Hose Wall: Multiple layers of fabric/film/tubes
    • Cover: Black PVC coated polyester
    • Outer Wire: Galvanized steel (G)
    • Temp Range: -40°F to +212°F (-40°C to +100°C)
    • Brand Method: Black text on gold stripe
    • Brand Example: PARKER SERIES 3100 CHEMICAL TRANSFER HOSE 250 PSI MAX WP MADE IN USA
    • Design Factor: 4:1
    • Industry Standards: None applicable
    • Applications: Chemicals, inks, paints, plant processing, rail cars, tank trucks
    • NOTE: Not for dry material service.
    • Vacuum: Full
    • Compare to: Apollo 1052P; Dantec Danchem PG/PS; Peraflex PGP Standard Chemical; Tift 951 PG/PS; Uni-Chem PG/PS; Wilcox 3091PG/3094PS
    • Standard Wire: P (Polypropylene-coated steel inner) and G (Galvanized) outer

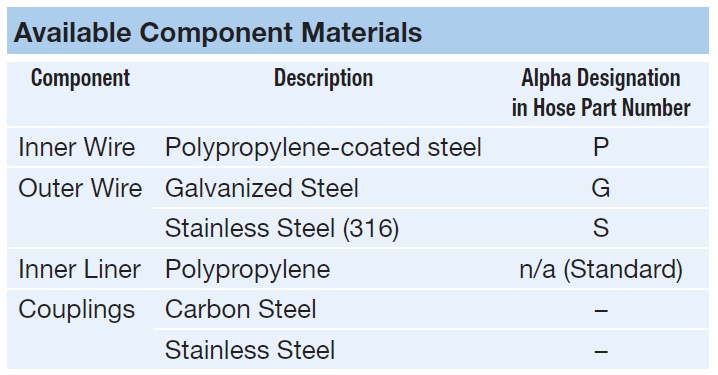

    • Available Wire Options: See table below
    • Alternate P/N Example: 3100PS-4000 (Polypropylene coated inner, Stainless outer)
    • Coupling Rec: Permanently attached one-piece male pipe or flanged ends; cam and groove.
    • Assemblies: Per customer requirement; hydrostatically tested to 150% of the rated working pressure

    Part Number

    ID
    (in)

    ID
    (mm)

    Approx Wt
    (lbs/ft)

    Min Bend Rad
    (in)

    Max Rec WP
    (psi)

    Max Lg
    (ft)

    3100PG-1000

    1

    25.4

    0.8

    5.0

    250

    75

    3100PG-1500

    1-1/2

    38.1

    1.0

    6.0

    250

    75

    3100PG-2000

    2

    50.8

    1.2

    6.5

    250

    75

    3100PG-2500

    2-1/2

    63.5

    1.6

    8.0

    250

    75

    3100PG-3000

    3

    76.2

    2.0

    9.5

    250

    70

    3100PG-4000

    4

    101.6

    4.4

    16.0

    250

    70

    3100PG-6000

    6

    152.4

    7.0

    20.0

    250

    65

    3100PG-8000

    8

    203.2

    10.0

    29.0

    250

    65

     chemical transfer hose 3100 series


    WARNINGS!
    „It is the responsibility of the user to determine if the hose is suitable for the application. Elevated temperatures can change the chemical resistance ratings. Many chemicals will become more aggressive as temperatures increase, reducing the ability of hose materials to withstand them. Refer to the Safety and Technical section for safety, handling and use information. Refer to the Composite Hose table in the Chemical Guide section to determine compatibility with specific chemicals. If no data exists, users are required to perform compatibility testing at the desired temperature.
    „
