WHIPPET 200 | Parker 7137 Hose

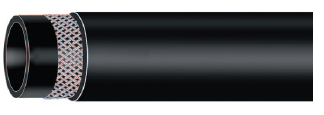

WHIPPET 200 - Multipurpose Hose


Series 7137 is a light duty, multipurpose hose designed to handle air, mild chemicals, oil and water, and is ideal for air hose whip ends, industrial bench work and light duty air lines. The braided textile reinforcement provides kink resistance and superior coupling retention, and the cover is resistant to oil and weathering.

Parker WHIPPET 200 Hose Sizes & Specifications

  • Tube: Black nitrile
  • Reinforcement: One textile braid
  • Cover: Black chloroprene, smooth finish
  • Temp. Range: -40°F to +180°F (-40°C to +82°C)
  • Brand Method: Not branded
  • Design Factor: 4:1
  • Industry Standards: None applicable
  • Applications: Air, mild chemicals, oil, water. Air tools, hose whips. Assembly lines, general industrial
  • Compare to: Boston Easy Couple
  • Packaging: Reels
  • Vacuum: Not recommended

Part Number

ID

Reinf
Braids

OD

Approx Wt

Min Bend Rad

Max Rec WP

Perm
Cplg
Rec

in

mm

in

mm

lbs/ft

kg/ft

in

mm

psi

bar

7137-251

1/4

6.4

1

0.435

11.0

0.06

0.03

2.0

50.8

200

13.8

HY

7137-311

5/16

7.9

1

0.531

13.5

0.09

0.04

2.5

63.5

200

13.8

HY

7137-381

3/8

9.5

1

0.625

15.9

0.12

0.05

3.5

88.9

200

13.8

HY


NOTE: Hose does not meet SAE standards for mobile equipment or vehicle engine service.

WARNING! Couplings attached with bands or clamps may reduce the working pressure of the hose assembly to less than the maximum rated working pressure of the hose. Refer to the NAHAD Industrial Hose Assembly Guidelines.
