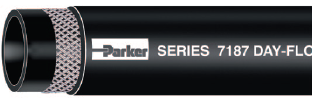

DAY-FLO | Parker 7187 Hose
DAY-FLO - Multipurpose Oil Resistant Hose
Series 7187 is a versatile, multipurpose hose designed to handle air, mild chemicals, oil, and water. The braided textile reinforcement provides kink resistance and superior coupling retention and the cover is resistant to oil and weathering.
Also available in Red. (Series 7134)
Parker DAY-FLO® Hose Sizes & Specifications
|
Part Number |
ID |
Reinf Braids |
OD |
Approx Wt |
Min Bend Radius |
Max Rec WP |
Perm Cplg Rec |
|||||
7187 |
in |
mm |
in |
mm |
lbs/ft |
kg/ft |
in |
mm |
psi |
bar |
||
-191 |
3/16 |
4.8 |
1 |
0.437 |
11.1 |
0.08 |
0.04 |
2.0 |
50.8 |
250 |
17.2 |
HY |
-251 |
1/4 |
6.4 |
1 |
0.500 |
12.7 |
0.09 |
0.04 |
2.5 |
63.5 |
250 |
17.2 |
HY |
-252 |
1/4 |
6.4 |
2 |
0.594 |
15.1 |
0.15 |
0.07 |
3.3 |
83.8 |
300 |
20.7 |
HY |
-311 |
5/16 |
7.9 |
1 |
0.625 |
15.9 |
0.14 |
0.06 |
3.0 |
76.2 |
250 |
17.2 |
HY |
-381 |
3/8 |
9.5 |
1 |
0.687 |
17.4 |
0.17 |
0.08 |
3.5 |
88.9 |
250 |
17.2 |
HY |
-382 |
3/8 |
9.5 |
2 |
0.719 |
18.3 |
0.19 |
0.09 |
4.0 |
101.6 |
300 |
20.7 |
HY |
-501 |
1/2 |
12.7 |
1 |
0.812 |
20.6 |
0.21 |
0.10 |
4.5 |
114.3 |
250 |
17.2 |
HY |
-502* |
1/2 |
12.7 |
2 |
0.875 |
22.2 |
0.26 |
0.12 |
4.8 |
121.9 |
300 |
20.7 |
HY |
NOTES: Do not use in hot, dry air applications or with refined fuel. Hose does not meet SAE standards for mobile equipment or vehicle engine service.
WARNING! Couplings attached with bands or clamps may reduce the working pressure of the hose assembly to less than the maximum rated working pressure of the hose. Refer to the NAHAD Industrial Hose Assembly Guidelines.
