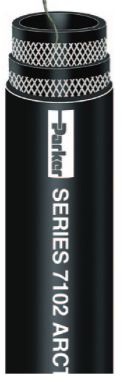

Parker Series 7102 is a low temperature, multipurpose hose designed to handle air, mild chemicals, water, oil and refined fuels such as biodiesel (to B20 in dedicated service), diesel, ethanol and gasoline. The hose construction incorporates a static wire as a path to conduct an electrical charge to ground, and the multiple plies of textile reinforcement provide flexibility and kink resistance to -70°F (-54°C). The cover is resistant to oil and weathering, and incorporates a longitudinal solid blue stripe for color-coded identification. Note: Do not use for fuel dispensing or service applications requiring API, NFPA, UL, ULC or any other agency approval or listing. Hose does not meet SAE standards for mobile equipment or vehicle engine service.
Parker ARCTIC EDGE 7102 Series Hose Features
|
Parker ACRTIC EDGE 7102 Series Hose Specifications
|
Part Number |
ID |
Reinf Plies |
OD |
Min Bend Radius |
Max Rec WP |
Perm Cplg Rec |
|
in |
in |
in |
psi |
|||
|
7102-38304 |
3/8 |
4 |
0.750 |
3.8 |
300 |
HY |
|
7102-50304 |
1/2 |
4 |
0.906 |
5.0 |
300 |
7661 |
|
7102-75304 |
3/4 |
4 |
1.156 |
6.0 |
300 |
HY |
|
7102-100304 |
1 |
4 |
1.458 |
8.0 |
300 |
HY |
|
7102-125304 |
1-1/4 |
4 |
1.810 |
9.0 |
300 |
HY |
|
7102-138304 |
1-3/8 |
4 |
1.925 |
9.5 |
300 |
* |
|
7102-150304 |
1-1/2 |
4 |
2.031 |
10.0 |
300 |
43 |
*Couplings: Refer to CrimpSource at www.safehose.com for coupling recommendations and crimp specifications.
WARNING!
Couplings attached with bands or clamps may reduce the working pressure of the hose assembly to less than the maximum rated working pressure of the hose. Refer to the NAHAD Industrial Hose Assembly Guidelines.
