Air & Multipurpose Industrial Hoses | Parker | DAY-FLO® Multipurpose Hose | 7134 & 7187 Series

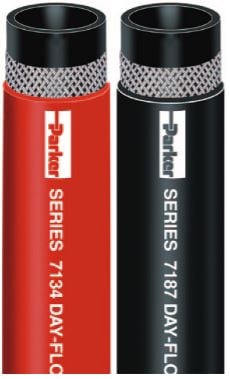

Parker DAY-FLO 7134 & 7187 Series Hose

Parker Series 7134 / 7187 is a versatile, multipurpose hose designed to handle air, mild chemicals, oil, and water. The braided textile reinforcement provides kink resistance and superior coupling retention and the cover is resistant to oil and weathering.
Note: Do not use in hot, dry air applications, impulsing applications or vehicle fuel systems. Hose does not mee
t SAE standards for mobile equipment or vehicle engine service.



Parker DAY-FLO 7134 & 7187 Series Hose Features

TUBE Black nitrile; ARPM Class A oil resistance
REINFORCEMENT One or two multiple textile braids
COVER

7134: Red chloroprene, smooth finish

7187: Black chloroprene, smooth finish

TEMPERATURE RANGE

-20°F to 212°F (-29°C to 100°C)

DESIGN FACTOR 4:1
INDUSTRY STANDARDS ARPM Class A oil resistant tube
APPLICATIONS
  • Air, mild chemicals, oil, water
  • Agriculture, construction, general industrial
VACUUM Not recommended
COMPARE TO Boston Easy Couple
PACKAGING Reels

Parker DAY-FLO 7134 & 7187 Series Hose Specifications

Part Number

ID

Reinf Braids

OD

Min Bend Radius

Max Rec WP

Perm Cplg Rec*

7134 or 7187

in

in

in

psi

-191

3/16

1

0.437

2.0

250

HY

-251

1/4

1

0.500

2.5

250

HY

-252

1/4

2

0.594

3.3

300

HY

-311

5/16

1

0.625

3.0

250

HY

-381

3/8

1

0.687

3.5

250

HY

-382

3/8

2

0.719

4.0

300

HY

-501

1/2

1

0.812

4.5

250

HY

-502**

1/2

2

0.875

4.8

300

HY

*Couplings: Refer to CrimpSource at www.safehose.com for coupling recommendations and crimp specifications.

**Series 7187 only

WARNING!

Couplings attached with bands or clamps may reduce the working pressure of the hose assembly to less than the maximum rated working pressure of the hose. Refer to the NAHAD Industrial Hose Assembly Guidelines.
„
