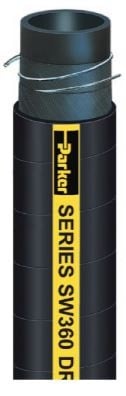

Air & Multipurpose Industrial Hoses | Parker | DRAGON BREATH® Hot Air Blower Hose | SW360 Series


Series SW360 is a heavy duty, high pressure hot air blower hose designed for bulk loading/ unloading of dry materials in plants or transport vehicles. The hose transfers hot air from a compressor to the storage bin/cargo bay to propel bulk product. The hose construction incorporates a tube that features a temperature rating to 350°F (177°C) and resists drying out. The dual wire helix provides full suction capability, kink resistance, flexibility for ease of handling and a path to conduct a static electrical charge to ground. The cover resists abrasion, heat and ozone.


TUBE Black EPDM
REINFORCEMENT Multiple textile plies with dual wire helix (one wire helix for 6" size)
COVER

Blue EPDM; wrapped finish

TEMPERATURE RANGE

-40°F to 350°F (-40°C to 177°C)

DESIGN FACTOR 4:1
APPLICATIONS
  • Hot air blower systems
  • In-plant transfer; delivery, loading/unloading
  • General industrial, transportation
VACUUM Full
COMPARE TO Eaton Boston Wildcat Hot Air; Gates Hot Air Blower; Veyance Plicord Torrid Air
PACKAGING Coils


Part #

ID

(in)

Reinf

Plies

OD

(in)

Min Bend Rad

(in)

Max Rec WP

(psi)

Perm

Cplg Rec

SW360-1500 1-1/2" 2 2.01 5.0 200 *
SW360-2000 2 2 2.55 6.0 200 *
SW360-3000 3 2 3.58 12.0 200 *
SW360-4000 4 2 4.59 16.0 125 *
SW360-6000 6 2 6.67 24.0 100 *

*Couplings: Refer to CrimpSource at www.safehose.com for coupling recommendations and crimp specifications.

WARNING!

Couplings attached with bands or clamps may reduce the working pressure of the hose assembly to less than the maximum rated working pressure of the hose. Refer to the NAHAD Industrial Hose Assembly Guidelines.

Do not use with cam and groove couplings.
„
