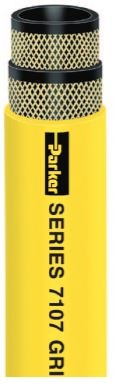

Air & Multipurpose Industrial Hoses | Parker | GRIZZLY® 500 Multipurpose Hose (Nonconductive) | 7107 Series
 |
Note: Do not use in hot, dry air applications or with refined fuel. Hose does not meet SAE standards for mobile equipment or vehicle engine service.The user must determine if the hose is suitable for applications subject to electrical hazard. Contact Parker for additional information.
Parker GRIZZLY 500 Series 7107 Hose Features
|
Parker GRIZZLY 500 Series 7107 Hose Specifications
|
Part Number |
ID |
Reinf |
OD |
Approx Wt |
Min Bend Rad |
Max Rec WP |
Perm |
|||||
|
in |
mm |
in |
mm |
lbs/ft |
kg/ft |
in |
mm |
psi |
bar |
|||
|
7107-25500 |
1/4 |
6.4 |
4 |
0.625 |
15.9 |
0.16 |
0.07 |
2.0 |
50.8 |
500 |
34.5 |
7661 |
|
7107-38500 |
3/8 |
9.5 |
4 |
0.750 |
19.1 |
0.20 |
0.09 |
3.0 |
76.2 |
500 |
34.5 |
HY |
|
7107-50500 |
1/2 |
12.7 |
4 |
0.906 |
22.2 |
0.27 |
0.12 |
3.0 |
76.2 |
500 |
34.5 |
7661 |
|
7107-75500 |
3/4 |
19.1 |
4 |
1.187 |
30.1 |
0.40 |
0.18 |
5.0 |
127.0 |
500 |
34.5 |
HY |
|
7107-75500050 |
3/4 |
19.1 |
4 |
1.187 |
30.1 |
0.40 |
0.18 |
5.0 |
127.0 |
500 |
34.5 |
HY |
|
7107-100500 |
1 |
25.4 |
4 |
1.500 |
38.1 |
0.59 |
0.27 |
6.0 |
152.4 |
500 |
34.5 |
7661 |
|
7107-125500 |
1-1/4 |
31.8 |
4 |
1.800 |
45.7 |
0.80 |
0.36 |
9.0 |
228.6 |
500 |
34.5 |
43 |
|
7107-150500 |
1-1/2 |
38.1 |
4 |
2.031 |
51.6 |
0.91 |
0.41 |
12.0 |
304.8 |
500 |
34.5 |
43 |
|
7107-200500 |
2 |
50.8 |
4 |
2.670 |
67.8 |
1.31 |
0.59 |
24.0 |
609.6 |
500 |
34.5 |
71 |
*Couplings: Refer to CrimpSource at www.safehose.com for coupling recommendations and crimp specifications.
WARNING!
Couplings attached with bands or clamps may reduce the working pressure of the hose assembly to less than the maximum rated working pressure of the hose. Refer to the NAHAD Industrial Hose Assembly Guidelines.
