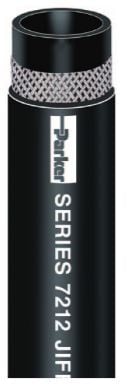

Parker JIFFY 7212 Series Hose


Parker 7212 Series is a versatile multipurpose push-on hose designed to handle air, mild chemicals, water, oil, and refined fuels such as biodiesel (to B20 in dedicated service), diesel, ethanol and gasoline. The hose construction incorporates a silicone-free tube that does not contaminate air powered paint spray systems. The braided textile reinforcement is applied at a precise angle to provide kink resistance and superior coupling retention—push-on couplings do not require bands, clamps or special tools for installation. The flame resistant cover meets MSHA requirements, is resistant to oil and weathering, and is available in multiple standard colors for color-coded identification.

Note: Do not use for fuel dispensing or service applications requiring API, NFPA, UL, ULC or any other agency approval or listing. Hose does not meet SAE standards for mobile equipment or vehicle engine service.Do not use in hot, dry air applications, pulsating applications, or vehicle fuel systems.Do not use bands or clamps to attach push-on couplings.



Parker JIFFY 7212 Series Hose Features

TUBE Black nitrile
REINFORCEMENT One textile braid
COVER Black, blue, gray, green, red or yellow chloroprene; smooth finish
TEMPERATURE RANGE

-40°F to 212°F (-40°C to 100°C)

DESIGN FACTOR 4:1
INDUSTRY STANDARDS MSHA
APPLICATIONS
  • Air, mild chemicals, oil, water; biodiesel (to B20 in dedicated service), diesel, ethanol, gasoline
  • Air operated paint systems, air tools, transfer lines, vacuum lines
  • Agriculture, construction, general industrial; automotive/factory color-coded assembly equipment
VACUUM 1/4" to 1/2" @ 28" Hg; 5/8" to 3/4" @ 15" Hg
COMPARE TO Gates Python Plus; Thermoid Flex Loc 300; Veyance Autogrip
PACKAGING Reels
COLOR CODES BK (black), BL (blue), GN (green), GY (gray), RD (red), YL (yellow)

Parker JIFFY 7212 Series Hose Specifications

Part Number

ID

Reinf
Braids

OD

Min Bend Rad

Max Rec WP

Perm
Cplg
Rec

in

in

in

psi

7212-251BK

1/4

1

0.494

3.0

300

HY

7212-251BL

1/4

1

0.494

3.0

300

HY

7212-251GN

1/4

1

0.494

3.0

300

HY

7212-251GY

1/4

1

0.494

3.0

300

HY

7212-251RD

1/4

1

0.494

3.0

300

HY

7212-381BK

3/8

1

0.617

3.0

300

HY

7212-381BL

3/8

1

0.617

3.0

300

HY

7212-381GN

3/8

1

0.617

3.0

300

HY

7212-381GY

3/8

1

0.617

3.0

300

HY

7212-381RD

3/8

1

0.617

3.0

300

HY

7212-381YL

3/8

1

0.617

3.0

300

HY

7212-501BK

1/2

1

0.750

5.0

300

HY

7212-501BL

1/2

1

0.750

5.0

300

HY

7212-501GN

1/2

1

0.750

5.0

300

HY

7212-501GY

1/2

1

0.750

5.0

300

HY

7212-501RD

1/2

1

0.750

5.0

300

HY

7212-631BK

5/8

1

0.906

6.0

300

HY

7212-631BL

5/8

1

0.906

6.0

300

HY

7212-631GN

5/8

1

0.906

6.0

300

HY

7212-631GY

5/8

1

0.906

6.0

300

HY

7212-631RD

5/8

1

0.906

6.0

300

HY

7212-750BK

3/4

1

1.091

7.0

300

HY

7212-750BL

3/4

1

1.091

7.0

300

HY

7212-750GN

3/4

1

1.091

7.0

300

HY

7212-750GY

3/4

1

1.091

7.0

300

HY

7212-750RD

3/4

1

1.091

7.0

300

HY

*Permanent Couplings: Refer to CrimpSource at www.safehose.com for coupling recommendations and crimp specifications.

Reattachable Couplings: Parker Series 82 Push-Lok couplings.

WARNING!

Couplings attached with bands or clamps may reduce the working pressure of the hose assembly to less than the maximum rated working pressure of the hose. Refer to the NAHAD Industrial Hose Assembly Guidelines.
„
