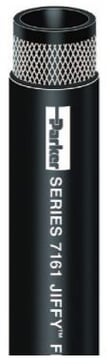

Parker JIFFY-FLEX 250 Series 7161 Hose

As of March 2018, the 7161 Series JIFFY-FLEX 250 Push-On Multipurpose Hose is obsolete and will no longer be available for purchase. Series 7212 JIFFY Push-On Multipurpose Hose is recommended as a replacement.


Parker Series 7161 is a versatile nonconductive multipurpose push-on hose designed to handle air, mild chemicals, oil, and water. The hose construction is electrically nonconductive with a minimum resistance of one mega ohm per inch at 1000 volts DC. The silicone-free tube does not contaminate air powered paint spray systems. The multiple plies of textile reinforcement are applied at a precise angle to provide flexibility and superior coupling retention—push-on couplings do not require bands, clamps or special tools for installation. The flame resistant cover meets MSHA requirements, is resistant to oil and weathering, and is available in multiple standard colors for color-coded identification.

Note: Do not use in hot, dry air applications, impulsing applications or vehicle fuel systems. Hose does not meet SAE standards for mobile equipment or vehicle engine service.

The user must determine if the hose is suitable for applications subject to electrical hazard. Contact Parker for additional information.

*Do not use bands or clamps to attach push-on couplings.



Parker JIFFY-FLEX 250 Series 7161 Hose Features

TUBE Black nitrile; ARPM Class A oil resistance
REINFORCEMENT Multiple textile plies
COVER Black, blue, gray, green, or red chloroprene; smooth finish
TEMPERATURE RANGE

-20°F to 180°F (-29°C to 82°C)

DESIGN FACTOR 4:1
INDUSTRY STANDARDS ARPM Class A oil resistant tube; electrically nonconductive with a minimum resistance of one megaohm per inch at 1000 volts DC; MSHA
APPLICATIONS
  • Air, mild chemicals, oil, water
  • Air operated paint systems, air tools, transfer lines, vacuum lines
  • Agriculture, construction, general industrial; automotive/factory color-coded assembly equipment
VACUUM Not recommended
COMPARE TO Boston Easy Couple; Thermoid Flex-Loc Push On; Veyance InstraGrip 250
PACKAGING Reels
COLOR CODES BK (black), BL (blue), GN (green), GY (gray), RD (red)

Parker JIFFY-FLEX 250 Series 7161 Hose Specifications

Part Number

ID

Reinf
Plies

OD

Approx Wt

Min Bend Rad

Max Rec WP

Perm
Cplg Rec

in

mm

in

mm

lbs/ft

kg/ft

in

mm

psi

bar

7161-25250BK

1/4

6.3

2

0.520

13.2

0.10

0.05

3.0

76.2

250

17.2

HY

7161-25250BL

1/4

6.3

2

0.520

13.2

0.10

0.05

3.0

76.2

250

17.2

HY

7161-25250GY

1/4

6.3

2

0.520

13.2

0.10

0.05

3.0

76.2

250

17.2

HY

7161-38250BK

3/8

9.5

2

0.645

16.4

0.14

0.06

3.0

76.2

250

17.2

HY

7161-38250BL

3/8

9.5

2

0.645

16.4

0.14

0.06

3.0

76.2

250

17.2

HY

7161-38250GN

3/8

9.5

2

0.645

16.4

0.14

0.06

3.0

76.2

250

17.2

HY

7161-38250GY

3/8

9.5

2

0.645

16.4

0.14

0.06

3.0

76.2

250

17.2

HY

7161-38250RD

3/8

9.5

2

0.645

16.4

0.14

0.06

3.0

76.2

250

17.2

HY

7161-50250BK

1/2

12.7

2

0.780

19.8

0.18

0.08

5.0

127.0

250

17.2

HY

7161-50250BL

1/2

12.7

2

0.780

19.8

0.18

0.08

5.0

127.0

250

17.2

HY

7161-50250GN

1/2

12.7

2

0.780

19.8

0.18

0.08

5.0

127.0

250

17.2

HY

7161-50250GY

1/2

12.7

2

0.780

19.8

0.18

0.08

5.0

127.0

250

17.2

HY

7161-50250RD

1/2

12.7

2

0.780

19.8

0.18

0.08

5.0

127.0

250

17.2

HY

*Permanent Couplings: Refer to CrimpSource at www.safehose.com for coupling recommendations and crimp specifications.

Reattachable Couplings: Parker Series 82 Push-Lok couplings.

WARNING!

Couplings attached with bands or clamps may reduce the working pressure of the hose assembly to less than the maximum rated working pressure of the hose. Refer to the NAHAD Industrial Hose Assembly Guidelines.
„
