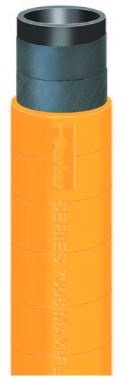

 Parker MAXIFLEX 7308 Series Hose

Series 7308/7308E is a flexible, lightweight, medium pressure hose designed to handle air, mild chemicals and water. The rugged cover is resistant to abrasion and weathering. Series 7308/7308E provides service for low to medium pressure air and water applications in construction, general industrial, mines and quarries.

Parker MAXIFLEX 7308 & 7308E Series Hose Features

TUBE Black SBR
REINFORCEMENT Multiple textile plies
COVER

Yellow SBR; wrapped finish

TEMPERATURE RANGE

-20°F to 212°F (-29°C to 100°C)

DESIGN FACTOR 3:1
INDUSTRIAL STANDARDS None applicable
APPLICATIONS
  • Air, water
  • Heavy duty air tools, compressors
  • Construction, general industrial, mines, quarries
VACUUM Not recommended
COMPARE TO Veyance Plicord Air 300
PACKAGING Coils

Parker MAXIFLEX Series 7308 Hose Specifications

Part Number

ID

Reinf
Plies

OD

Max Rec WP

Perm
Cplg
Rec

in

in

psi

7308-1004

1

2

1.488

250

*

7308-1254

1-1/4

2

1.772

250

*

7308-1504

1-1/2

2

2.031

250

*

7308-2004

2

4

2.598

250

*

7308-2504

2-1/2

4

3.051

250

*

7308-3004

3

4

3.528

250

*

Parker MAXIFLEX Series 7308E Hose Specifications

Part Number

ID

Reinf
Plies

OD

Max Rec WP

Perm
Cplg
Rec

in

in

psi

7308E-2000

2

2

2.560

300

*

*Couplings: Refer to CrimpSource at www.safehose.com for coupling recommendations and crimp specifications.

WARNING!

Couplings attached with bands or clamps may reduce the working pressure of the hose assembly to less than the maximum rated working pressure of the hose. Refer to the NAHAD Industrial Hose Assembly Guidelines.
„
