Air & Multipurpose Industrial Hoses | Parker | MAXIMAIRE™ Heavy Duty Air Hose (Nonconductive) | 7201 Series

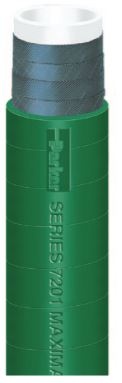

    Parker MAXIMAIRE 7201 Series Hose

    Series 7201 is a heavy duty hose designed to handle air, mild chemicals, oil and water. The hose is electrically nonconductive with a minimum resistance of one megaohm per inch at 1000 volts DC. The nitrile/PVC cover is resistant to abrasion, oil and weathering.

    Parker MAXIMAIRE 7201 Series Hose Features

    TUBE White chloroprene
    REINFORCEMENT Multiple textile plies
    COVER

    Green nitrile/PVC; wrapped finish
    TEMPERATURE RANGE

    -20°F to 180°F (-29°C to 82°C)
    DESIGN FACTOR 4:1
    INDUSTRIAL STANDARDS Electrically nonconductive with a minimum resistance of one megaohm per inch at 1000 volts DC
    APPLICATIONS
    • Air, mild chemicals, oil, slurries, water
    • Heavy duty air tools, compressors
    • Construction, general industrial, mines, quarries
    VACUUM Not recommended
    COMPARE TO Boston Shock Safe, Mineforce; Veyance Ortac 400
    PACKAGING Coils

    Parker MAXIMAIRE 7201 Series Hose Specifications

    Part Number

    ID

    Reinf
    Plies

    OD

    Max Rec WP

    Perm
    Cplg
    Rec

    in

    in

    psi

    7201-752100

    3/4

    4

    1.250

    500

    *

    7201-1002050

    1

    4

    1.551

    500

    *

    7201-1002100

    1

    4

    1.551

    500

    *

    7201-1252K

    1-1/4

    4

    1.812

    350

    *

    7201-1503K

    1-1/2

    4

    2.125

    350

    *

    7201-2003K

    2

    6

    2.656

    350

    *

    *Couplings: Refer to CrimpSource at www.safehose.com for coupling recommendations and crimp specifications.

    WARNING!

    Couplings attached with bands or clamps may reduce the working pressure of the hose assembly to less than the maximum rated working pressure of the hose. Refer to the NAHAD Industrial Hose Assembly Guidelines.
    „
