Air & Multipurpose Industrial Hoses | Parker | Medium Multipurpose Discharge Hose | SS110 Series

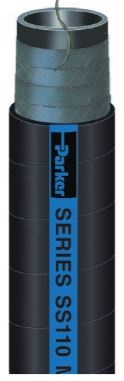

Parker SS110 Series Hose

Note: As of July 2018, Parker has discontinued production of the SS110 hose series. Series 7311N (Wildcatter Discharge Hose) has been recommended as a replacement.

Parker Series SS110 is a large diameter, medium duty discharge hose designed to handle air, mild chemicals, oil, and water. The hose construction incorporates a static wire to conduct an electrical charge to ground, and the cover is resistant to abrasion and weathering.

Note: Hose does not meet SAE standards for mobile equipment or vehicle engine service.

Parker SS110 Series Hose Features

TUBE Black nitrile
REINFORCEMENT Multiple textile plies with static wire
COVER

Black SBR; perforated wrapped finish

TEMPERATURE RANGE

-40°F to 180°F (-40°C to 82°C)

DESIGN FACTOR 4:1
APPLICATIONS
  • Air, mild chemicals, oil, water
  • General industrial, oil field
VACUUM Not recommended
PACKAGING Coils

Parker SS110 Series Hose Specifications

Part Number

ID

Reinf
Plies

OD

Max Rec WP

Perm
Cplg
Rec

in

in

psi

SS110-1250

1-1/4

4

1.875

500

*

SS110-1500

1-1/2

4

2.188

500

*

SS110-2000

2

4

2.750

500

*

SS110-2500

2-1/2

6

3.375

500

*

SS110-3000

3

6

3.875

500

*

SS110-4000

4

6

5.000

500

*

SS110-6000

6

8

7.125

400

*

*Couplings: Refer to CrimpSource at www.safehose.com for coupling recommendations and crimp specifications.

WARNING!

Couplings attached with bands or clamps may reduce the working pressure of the hose assembly to less than the maximum rated working pressure of the hose. Refer to the NAHAD Industrial Hose Assembly Guidelines.
„
